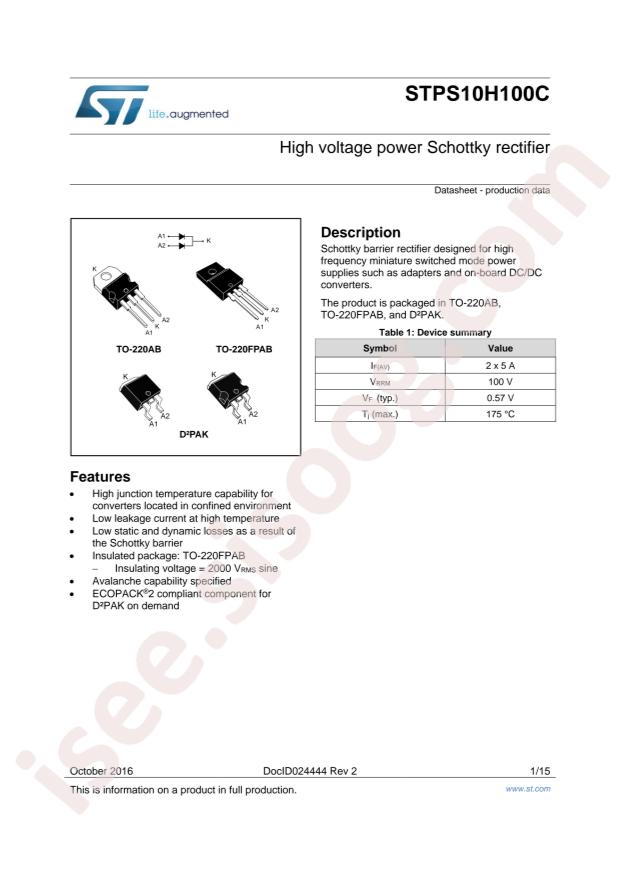

STPS10H100CT دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | STPS10H100CT |
|---|---|
| حجم فایل | 50.899 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 15 |
دانلود دیتاشیت STPS10H100CT |
دانلود دیتاشیت |
|---|
سایر مستندات
STPS10H100CT/CG/CR/CFP 7 pages
مشخصات فنی
- RoHS: true
- Category: Diodes/Schottky Barrier Diodes (SBD)
- Datasheet: STMicroelectronics STPS10H100CT
- Diode Configuration: Dual Common Cathode
- Reverse Voltage (Vr): 100V
- Forward Voltage (Vf@If): 730mV@5A
- Reverse Leakage Current (Ir): 3.5uA@100V
- Average Rectified Current (Io): 5A
- Package: TO-220
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Tube
- Part Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 100V
- Current - Average Rectified (Io) (per Diode): 5A
- Voltage - Forward (Vf) (Max) @ If: 730mV @ 5A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Current - Reverse Leakage @ Vr: 3.5µA @ 100V
- Operating Temperature - Junction: 175°C (Max)
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220AB
- Base Part Number: STPS10
- detail: Diode Array 1 Pair Common Cathode Schottky 100V 5A Through Hole TO-220-3
