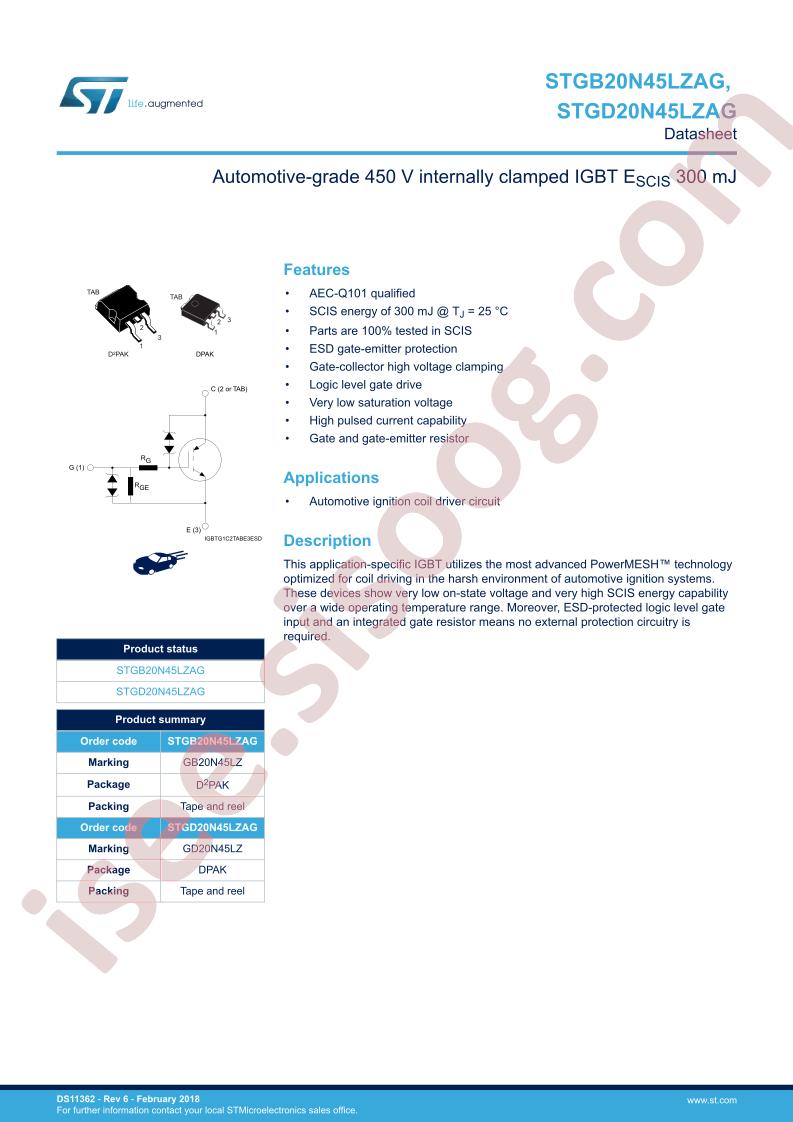

دیتاشیت STGD20N45LZAG

STGx20N45LZAG

مشخصات دیتاشیت

نام دیتاشیت STGx20N45LZAG
حجم فایل 539.373 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

دانلود دیتاشیت STGx20N45LZAG

STGx20N45LZAG Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: Automotive, AEC-Q101
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • IGBT Type: -
  • Voltage - Collector Emitter Breakdown (Max): 450V
  • Current - Collector (Ic) (Max): 25A
  • Current - Collector Pulsed (Icm): 50A
  • Vce(on) (Max) @ Vge, Ic: 1.25V @ 4V, 6A
  • Power - Max: 125W
  • Switching Energy: -
  • Input Type: Logic
  • Gate Charge: 26nC
  • Td (on/off) @ 25°C: 1.1µs/4.6µs
  • Test Condition: 300V, 10A, 1kOhm, 5V
  • Operating Temperature: -55°C ~ 175°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Supplier Device Package: DPAK
  • Base Part Number: STGD20
  • detail: IGBT 450V 25A 125W Surface Mount DPAK
