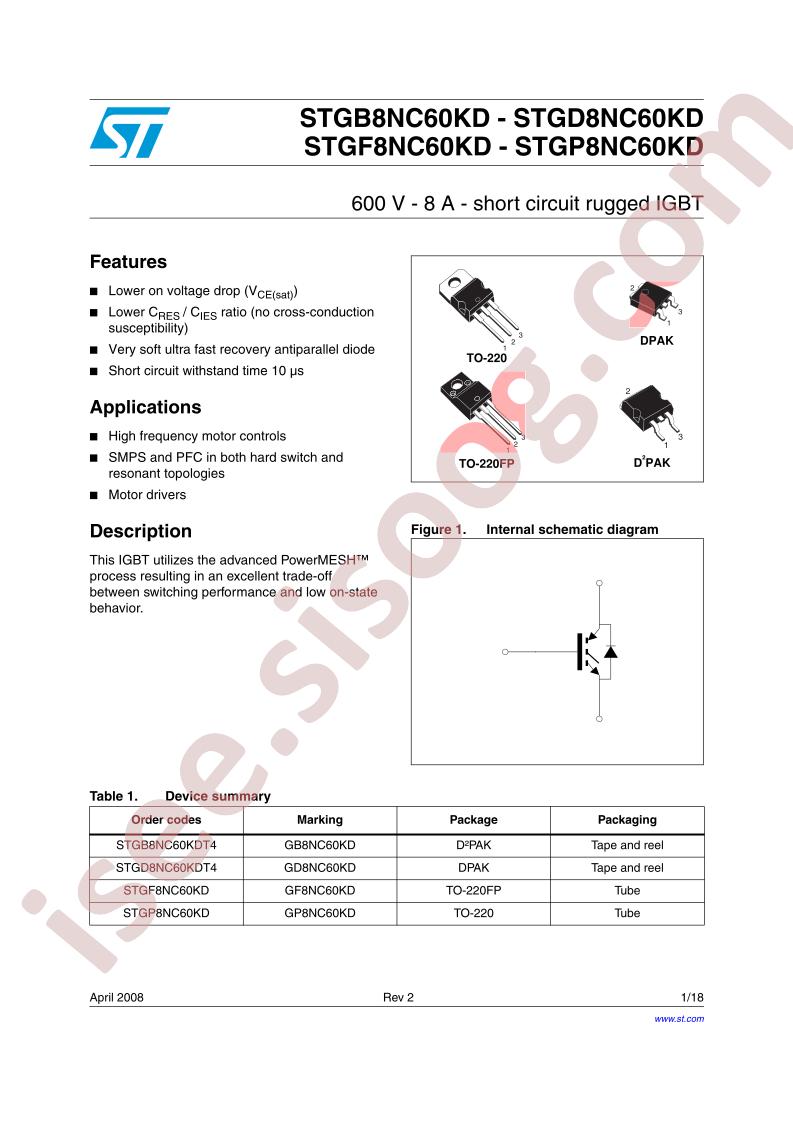

STGx8NC60KD دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STGx8NC60KD
|
|
حجم فایل
|
568.506
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
18
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
PowerMESH™
-
Packaging:
Tube
-
Part Status:
Active
-
IGBT Type:
-
-
Voltage - Collector Emitter Breakdown (Max):
600V
-
Current - Collector (Ic) (Max):
7A
-
Current - Collector Pulsed (Icm):
30A
-
Vce(on) (Max) @ Vge, Ic:
2.75V @ 15V, 3A
-
Power - Max:
24W
-
Switching Energy:
55µJ (on), 85µJ (off)
-
Input Type:
Standard
-
Gate Charge:
19nC
-
Td (on/off) @ 25°C:
17ns/72ns
-
Test Condition:
390V, 3A, 10Ohm, 15V
-
Reverse Recovery Time (trr):
23.5ns
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-3 Full Pack
-
Supplier Device Package:
TO-220FP
-
Base Part Number:
STGF8
-
detail:
IGBT 600V 7A 24W Through Hole TO-220FP
