دیتاشیت TPS56628DDAR

TPS56628

مشخصات دیتاشیت

نام دیتاشیت TPS56628
حجم فایل 1680.453 کیلوبایت
نوع فایل pdf
تعداد صفحات 25

دانلود دیتاشیت TPS56628

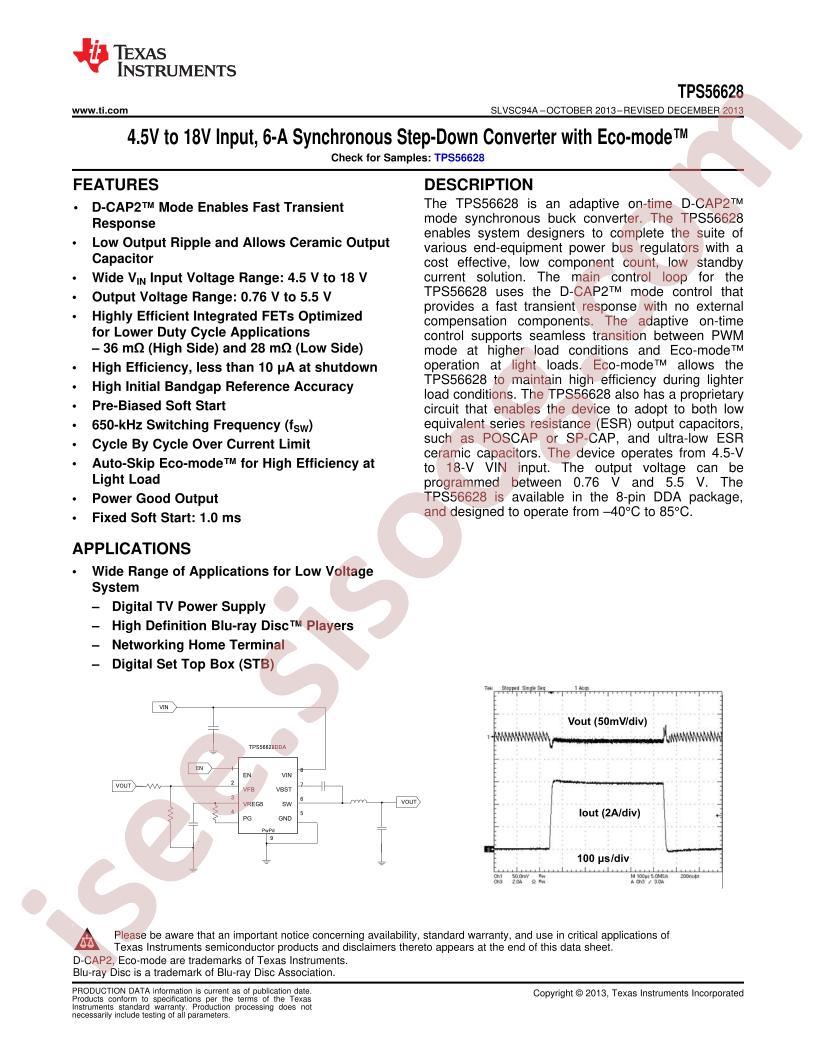

TPS56628 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/DC-DC Converters
  • Function: Step-down type
  • Topology: Step-down
  • Datasheet: Texas Instruments TPS56628DDAR
  • Output Type: Adjustable
  • Input Voltage: 4.5V~18V
  • Output Voltage: 0.765V~5.5V
  • Number of Outputs: 1
  • Switching Frequency: 650kHz
  • Output Current (Max): 6A
  • Operating Temperature: -40°C~+85°C@(TA)
  • Synchronous Rectification: Yes
  • Package: SOP-8-EP
  • Manufacturer: Texas Instruments
  • Supplier Device Package: 8-SO PowerPad
  • Voltage - Input (Min): 4.5V
  • Voltage - Output (Max): 5.5V
  • Output Configuration: Positive
  • Mounting Type: Surface Mount
  • Current - Output: 6A
  • Synchronous Rectifier: Yes
  • Frequency - Switching: 650kHz
  • Packaging: Cut Tape (CT)
  • Voltage - Output (Min/Fixed): 0.765V
  • Series: D-CAP2™, Eco-Mode™
  • Base Part Number: TPS566
  • Voltage - Input (Max): 18V
  • Part Status: Active
  • Package / Case: 8-PowerSOIC (0.154", 3.90mm Width)
