دیتاشیت TEA3718SDP

TEA3718

مشخصات دیتاشیت

نام دیتاشیت TEA3718
حجم فایل 599.117 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

دانلود دیتاشیت TEA3718

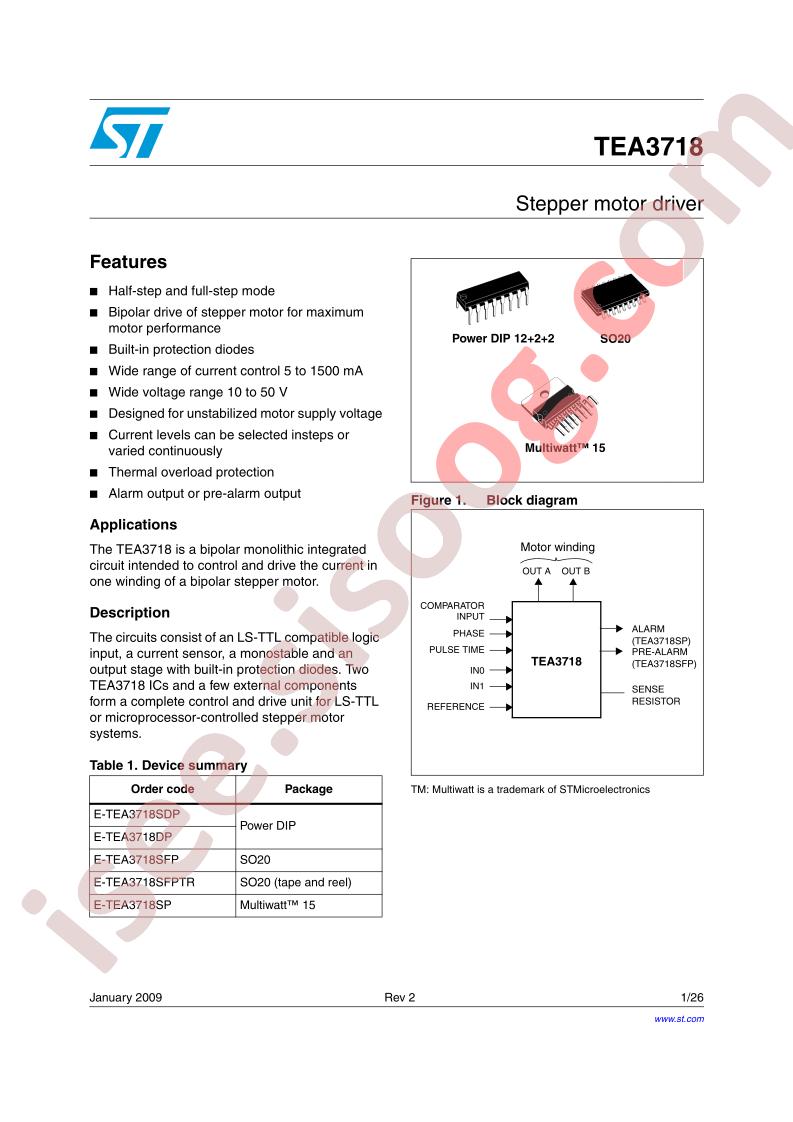

TEA3718 Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Motor Type - Stepper: Bipolar
  • Motor Type - AC, DC: -
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Output Configuration: Half Bridge (2)
  • Interface: Parallel
  • Technology: Bipolar
  • Step Resolution: 1, 1/2
  • Applications: General Purpose
  • Current - Output: 1.5A
  • Voltage - Supply: 4.75V ~ 5.25V
  • Voltage - Load: 10V ~ 45V
  • Operating Temperature: 0°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Package / Case: 16-DIP (0.300", 7.62mm)
  • Supplier Device Package: 16-PowerDIP
  • Base Part Number: TEA3718
  • detail: Bipolar Motor Driver Bipolar Parallel 16-PowerDIP
