دیتاشیت CD74HC238E
مشخصات دیتاشیت
| نام دیتاشیت | CD54,74HC(T)138,238 |
|---|---|
| حجم فایل | 866.58 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 20 |

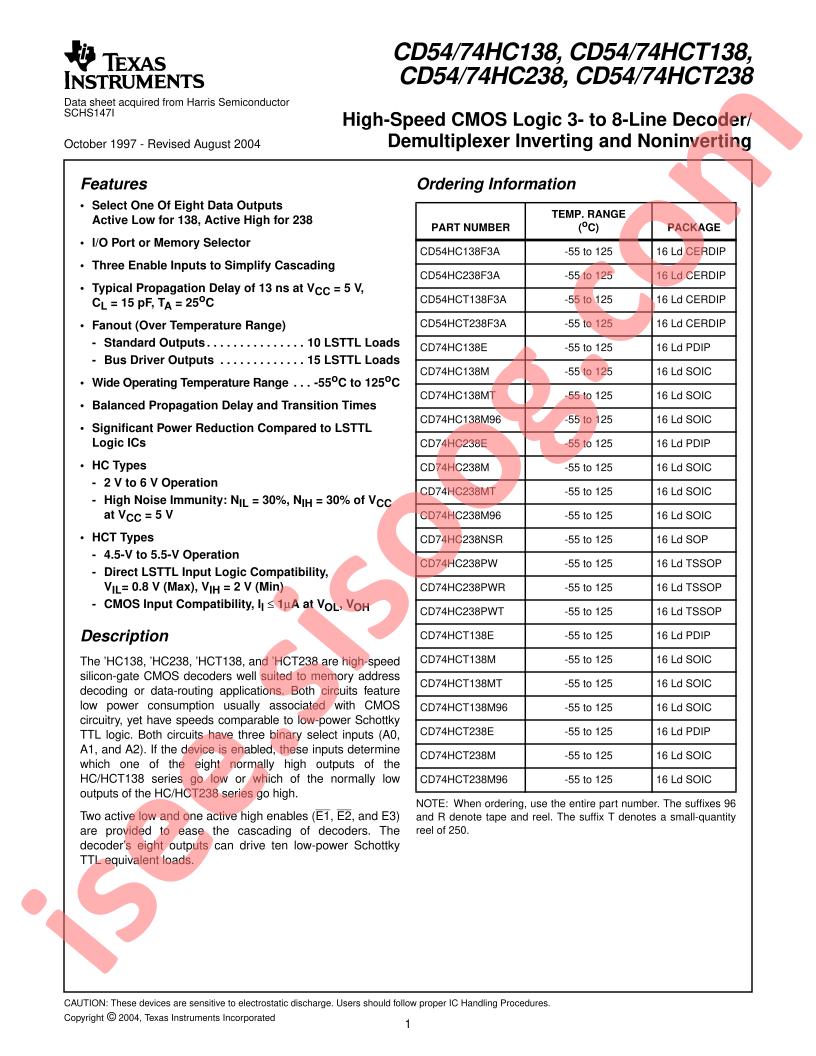

دانلود دیتاشیت CD54,74HC(T)138,238 |
CD54,74HC(T)138,238 Datasheet |
|---|
مشخصات
- RoHS: true
- Type: Decoder/Demultiplexers
- Category: Logic ICs/Signal Switches / Encoders & Decoders / Multiplexers
- Datasheet: Texas Instruments CD74HC238E
- Sink Current: 5.2mA
- Source Current: 5.2mA
- Supply Voltage: 2V~6V
- Operating temperature: -55°C~+125°C
- Voltage Supply Source: Single supply
- Package: PDIP-16
- Manufacturer: Texas Instruments
- Supplier Device Package: 16-PDIP
- Current - Output High, Low: 5.2mA, 5.2mA
- Circuit: 1 x 3:8
- Mounting Type: Through Hole
- Base Part Number: 74HC238
- Packaging: Tube
- Series: 74HC
- Independent Circuits: 1
- Part Status: Active
- Package / Case: 16-DIP (0.300", 7.62mm)
- Voltage - Supply: 2V ~ 6V
- detail: Decoder/Demultiplexer 1 x 3:8 16-PDIP
