- دیتاشیت SN74LS377N
SN74LS377N دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SN74LS377N |
|---|---|
| حجم فایل | 72.477 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 22 |
دانلود دیتاشیت SN74LS377N |
دانلود دیتاشیت |
|---|
سایر مستندات

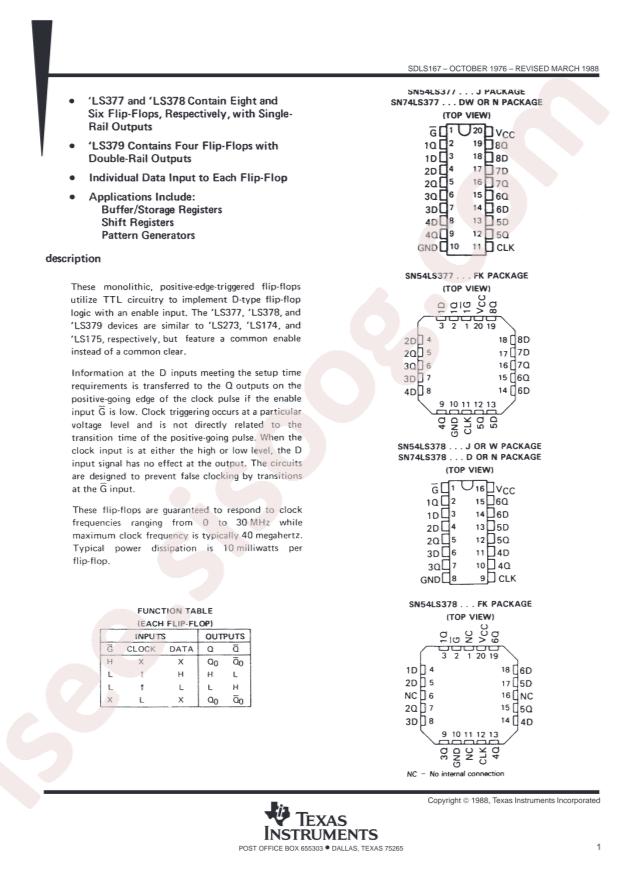

SN54LS377-79, SN74LS377-79 22 pages
مشخصات فنی
- RoHS: true
- Type: D-Type
- Series: 74LS
- Category: Logic ICs/Flip Flops
- Function: Standard
- Datasheet: Texas Instruments SN74LS377N
- Output Type: 互补型
- Sink Current: 8mA
- Trigger Type: 上升沿
- Source Current: 400uA
- Supply Voltage: 4.75V~5.25V
- Clock Frequency: 40MHz
- Input Capacitance: -
- Number of Elements: 1
- Operating Temperature: 0°C~+70°C
- Quiescent Current (Iq): 28mA
- Maximum Propagation Delay: 27ns@5V,15pF
- Number of Bits per Element: 8
- Package: DIP-20
- Manufacturer: Texas Instruments
- Supplier Device Package: 20-PDIP
- Current - Output High, Low: 400µA, 8mA
- Voltage - Supply: 4.75V ~ 5.25V
- Current - Quiescent (Iq): 28mA
- Mounting Type: Through Hole
- Packaging: Tube
- Max Propagation Delay @ V, Max CL: 27ns @ 5V, 15pF
- Base Part Number: SN74LS37
- Part Status: Active
- Package / Case: 20-DIP (0.300", 7.62mm)
- detail: Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-DIP (0.300", 7.62mm)
