دیتاشیت SN74LS109AN
مشخصات دیتاشیت
| نام دیتاشیت | SN54/74(LS)109(A) |
|---|---|
| حجم فایل | 634.642 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 11 |
دانلود دیتاشیت SN54/74(LS)109(A) |

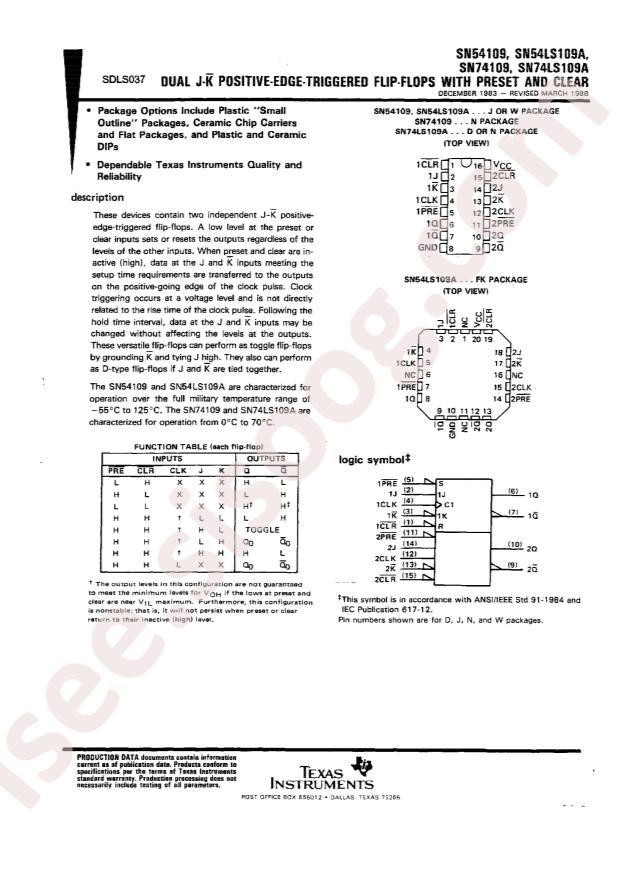

SN54/74(LS)109(A) Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Logic ICs/Flip Flops
- Datasheet: Texas Instruments SN74LS109AN
- Package: PDIP-16
- Manufacturer: Texas Instruments
- Number of Elements: 2
- Operating Temperature: 0°C ~ 70°C (TA)
- Function: Set(Preset) and Reset
- Supplier Device Package: 16-PDIP
- Current - Output High, Low: 400µA, 8mA
- Voltage - Supply: 4.75V ~ 5.25V
- Current - Quiescent (Iq): 8mA
- Output Type: Differential
- Mounting Type: Through Hole
- Type: JK Type
- Packaging: Tube
- Number of Bits per Element: 1
- Trigger Type: Positive Edge
- Series: 74LS
- Max Propagation Delay @ V, Max CL: 40ns @ 5V, 15pF
- Clock Frequency: 33MHz
- Base Part Number: SN74LS10
- Part Status: Active
- Package / Case: 16-DIP (0.300", 7.62mm)
