دیتاشیت HCF4051BM1

HCF4051B

مشخصات دیتاشیت

نام دیتاشیت HCF4051B
حجم فایل 554.206 کیلوبایت
نوع فایل pdf
تعداد صفحات 10

دانلود دیتاشیت HCF4051B

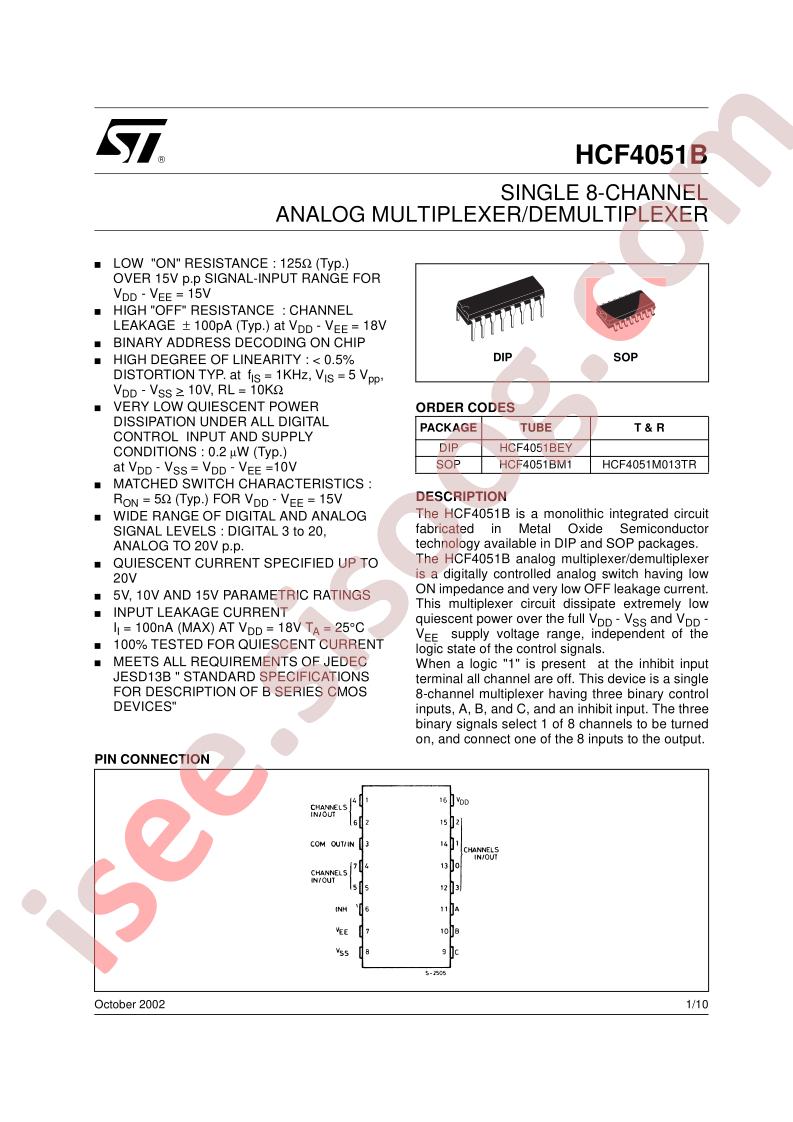

HCF4051B Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Obsolete
  • Switch Circuit: -
  • Multiplexer/Demultiplexer Circuit: 8:1
  • Number of Circuits: 1
  • On-State Resistance (Max): 280Ohm
  • Channel-to-Channel Matching (ΔRon): 5Ohm
  • Voltage - Supply, Single (V+): 3V ~ 20V
  • Voltage - Supply, Dual (V±): -
  • Switch Time (Ton, Toff) (Max): -
  • -3db Bandwidth: 60MHz
  • Charge Injection: -
  • Channel Capacitance (CS(off), CD(off)): 0.2pF, 5pF
  • Current - Leakage (IS(off)) (Max): 100nA
  • Crosstalk: -40dB @ 3MHz
  • Operating Temperature: -55°C ~ 125°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 16-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 16-SO
  • Base Part Number: HCF4051
  • detail: 1 Circuit IC Switch 8:1 280Ohm 16-SO
