دیتاشیت SN74HC166N
مشخصات دیتاشیت
| نام دیتاشیت | SN54HC166, SN74HC166 |
|---|---|
| حجم فایل | 1896.066 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 35 |
دانلود دیتاشیت SN54HC166, SN74HC166 |

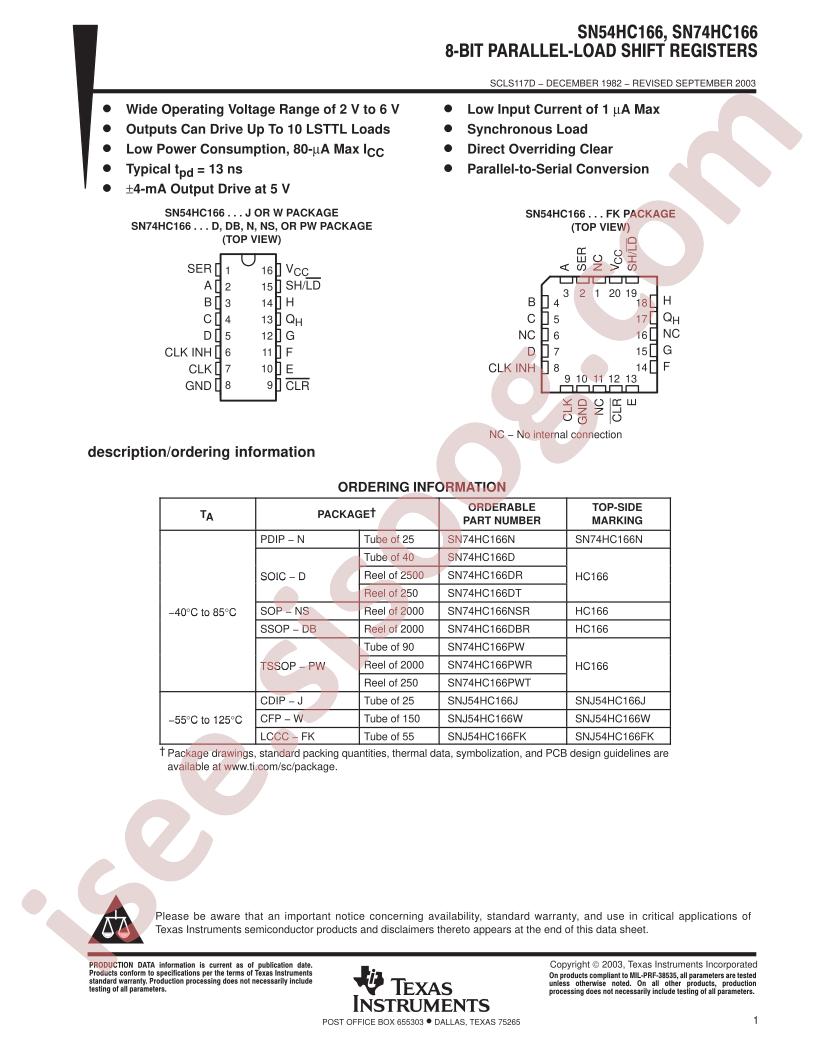

SN54HC166, SN74HC166 Datasheet |
|---|
مشخصات
- RoHS: true
- Series: 74HC
- Category: Logic ICs/Shifting Register
- Function: ParallelorSerialtoSerial
- Datasheet: Texas Instruments SN74HC166N
- Output Type: Push-pull
- Supply Voltage: 2V~6V
- Number of Elements: 1
- Operating Temperature: -40°C~+85°C
- Number of Bits per Element: 8
- Package: DIP-16
- Manufacturer: Texas Instruments
- Supplier Device Package: 16-PDIP
- Part Status: Active
- Mounting Type: Through Hole
- Base Part Number: SN74HC1
- Packaging: Tube
- Package / Case: 16-DIP (0.300", 7.62mm)
- Voltage - Supply: 2V ~ 6V
- Logic Type: Shift Register
- detail: Shift Shift Register 1 Element 8 Bit 16-PDIP
