دیتاشیت SN74HC253N
مشخصات دیتاشیت
| نام دیتاشیت | SN54HC253, SN74HC253 |
|---|---|
| حجم فایل | 1096.772 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 20 |
دانلود دیتاشیت SN54HC253, SN74HC253 |

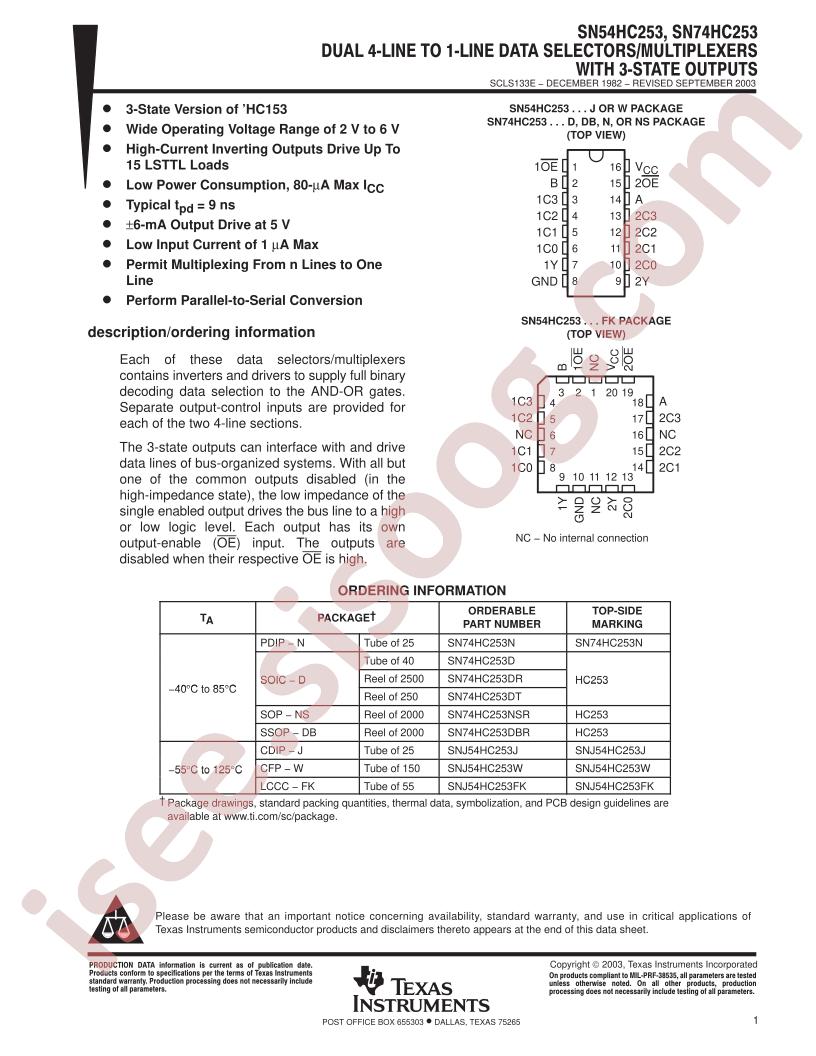

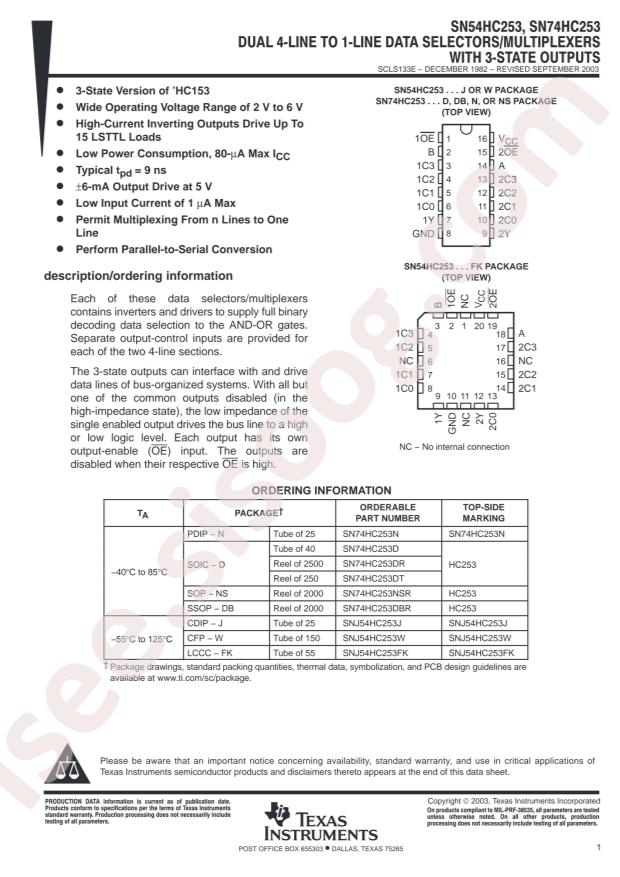

SN54HC253, SN74HC253 Datasheet |
|---|
مشخصات
- RoHS: true
- Type: Multiplexers
- Category: Logic ICs/Signal Switches / Encoders & Decoders / Multiplexers
- Datasheet: Texas Instruments SN74HC253N
- Sink Current: 7.8mA
- Source Current: 7.8mA
- Supply Voltage: 2V~6V
- Operating temperature: -40°C~+85°C
- Voltage Supply Source: Single supply
- Package: PDIP-16
- Manufacturer: Texas Instruments
- Supplier Device Package: 16-PDIP
- Current - Output High, Low: 7.8mA, 7.8mA
- Circuit: 2 x 4:1
- Mounting Type: Through Hole
- Base Part Number: SN74HC2
- Packaging: Tube
- Series: 74HC
- Independent Circuits: 1
- Part Status: Active
- Package / Case: 16-DIP (0.300", 7.62mm)
- Voltage - Supply: 2V ~ 6V
- detail: Multiplexer 2 x 4:1 16-PDIP
