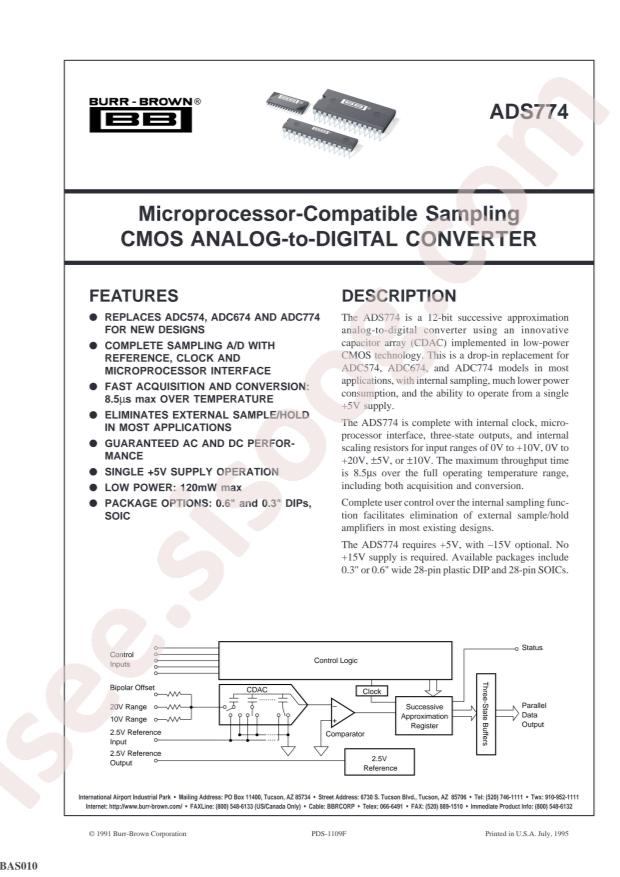

ADS774JU دیتاشیت

ADS774JU

مشخصات دیتاشیت

نام دیتاشیت ADS774JU
حجم فایل 83.138 کیلوبایت
نوع فایل pdf
تعداد صفحات 21

دانلود دیتاشیت ADS774JU

دانلود دیتاشیت

سایر مستندات

ADS774 20 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Texas Instruments ADS774JU
  • Interface: Parallel
  • resolution: 12Bit
  • Supply Voltage: 5V;5.5V~16.5V
  • number of channels: 1
  • sampling frequency: 125kHz
  • Operating Temperature: -40°C~+85°C
  • Package: SOP-28-300mil
  • Manufacturer: Texas Instruments
  • Architecture: SAR
  • Sampling Rate (Per Second): 125k
  • Series: -
  • Voltage - Supply, Analog: 5V, -16.5V ~ 5.5
  • Input Type: Single Ended
  • Number of A/D Converters: 1
  • Number of Bits: 12
  • Voltage - Supply, Digital: 5V
  • Packaging: Tube
  • Reference Type: External, Internal
  • Ratio - S/H:ADC: 1:1
  • Configuration: S/H-ADC
  • Supplier Device Package: 28-SOIC
  • Data Interface: Parallel
  • Base Part Number: ADS774
  • Features: -
  • Number of Inputs: 1
  • Mounting Type: Surface Mount
  • Part Status: Active
  • Package / Case: 28-SOIC (0.295", 7.50mm Width)
  • detail: 12 Bit Analog to Digital Converter 1 Input 1 SAR 28-SOIC
