دیتاشیت SN74LS375N
مشخصات دیتاشیت
| نام دیتاشیت | SN54LS375, SN74LS375 |
|---|---|
| حجم فایل | 394.688 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 9 |
دانلود دیتاشیت SN54LS375, SN74LS375 |

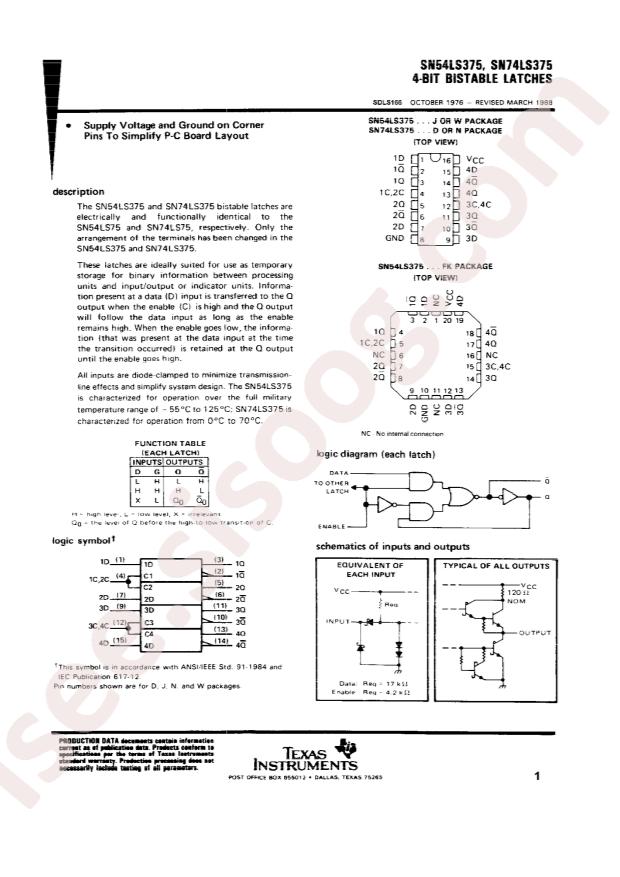

SN54LS375, SN74LS375 Datasheet |
|---|
مشخصات
- RoHS: true
- Series: 74LS
- Category: Logic ICs/Latches
- Datasheet: Texas Instruments SN74LS375N
- Logic Type: D-Typelocking Latch
- Output Type: Differential
- Sink Current: 8mA
- Source Current: 400uA
- Supply Voltage: 4.75V~5.25V
- Propagation Delay: 12ns
- OperatingTemperature: 0°C~+70°C
- Package: PDIP-16
- Manufacturer: Texas Instruments
- Delay Time - Propagation: 12ns
- Supplier Device Package: 16-PDIP
- Package / Case: 16-DIP (0.300", 7.62mm)
- Circuit: 1:1
- Mounting Type: Through Hole
- Base Part Number: SN74LS37
- Packaging: Tube
- Voltage - Supply: 4.75V ~ 5.25V
- Current - Output High, Low: 400µA, 8mA
- Independent Circuits: 4
- Operating Temperature: 0°C ~ 70°C
- Part Status: Active
- detail: D-Type Transparent Latch 4 Channel 1:1 IC Differential 16-PDIP
