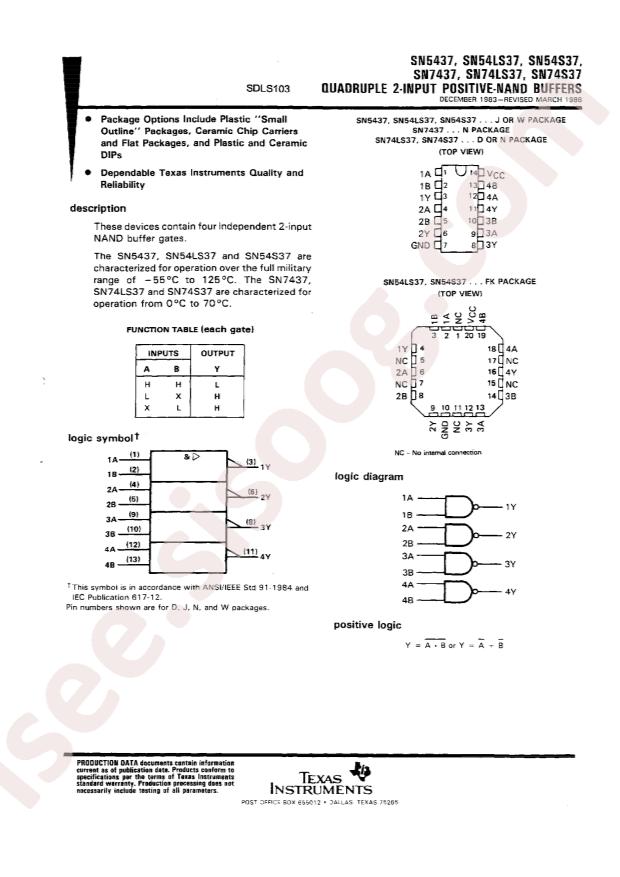

SN74LS37N دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
SN74LS37N
|
|
حجم فایل
|
65.219
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
21
|
مشخصات فنی
-
RoHS:
true
-
Series:
74LS
-
Category:
Logic ICs/Gates
-
Datasheet:
Texas Instruments SN74LS37N
-
Sink Current:
24mA
-
Source Current:
1.2mA
-
Supply Voltage:
4.75V~5.25V
-
Logic Gate Type:
NAND Gates
-
Number of Channels:
4
-
Low Level Range (VIL):
0.8V
-
Operating Temperature:
0°C~+70°C
-
High Level Range (VIH):
2V
-
Propagation Delay Time:
24ns@5V,45pF
-
Package:
PDIP-14
-
Manufacturer:
Texas Instruments
-
Logic Level - High:
2V
-
Base Part Number:
SN74LS37
-
Supplier Device Package:
14-PDIP
-
Logic Level - Low:
0.8V
-
Package / Case:
14-DIP (0.300", 7.62mm)
-
Current - Output High, Low:
1.2mA, 24mA
-
Features:
-
-
Mounting Type:
Through Hole
-
Packaging:
Tube
-
Voltage - Supply:
4.75V ~ 5.25V
-
Number of Circuits:
4
-
Max Propagation Delay @ V, Max CL:
24ns @ 5V, 45pF
-
Number of Inputs:
2
-
Part Status:
Active
-
Logic Type:
NAND Gate
-
detail:
NAND Gate IC 4 Channel 14-PDIP
