دیتاشیت LM306P

LM306

مشخصات دیتاشیت

نام دیتاشیت LM306
حجم فایل 449.804 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

دانلود دیتاشیت LM306

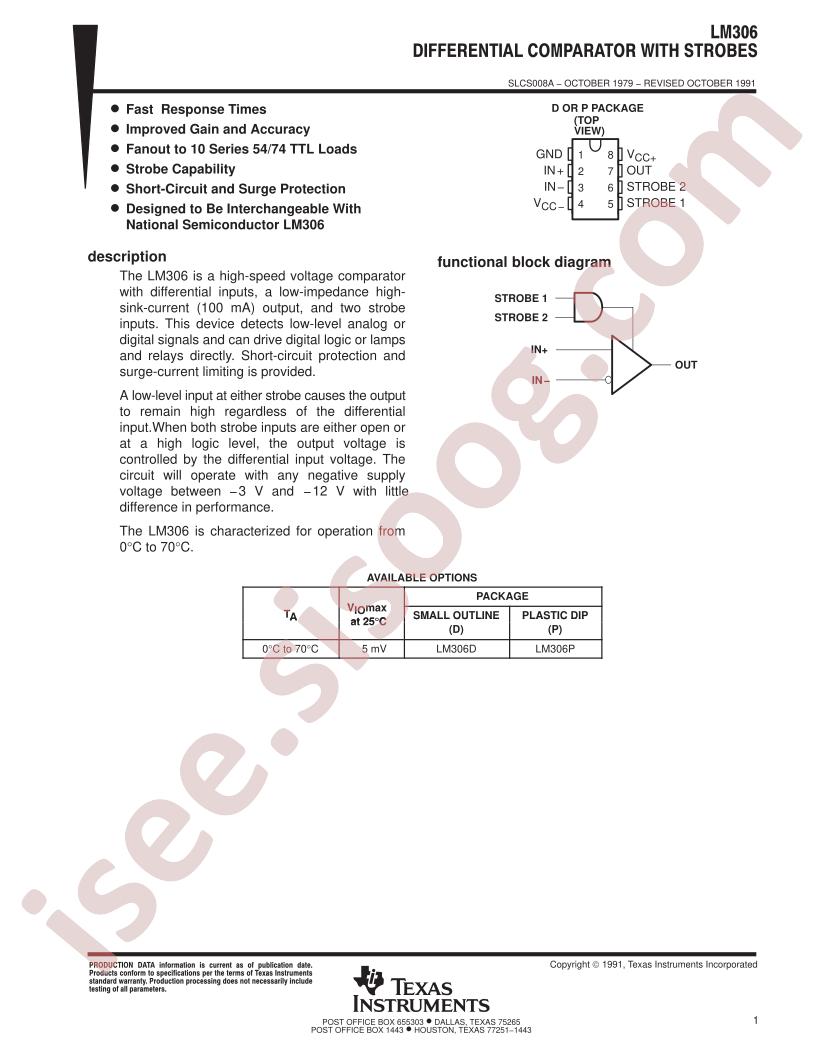

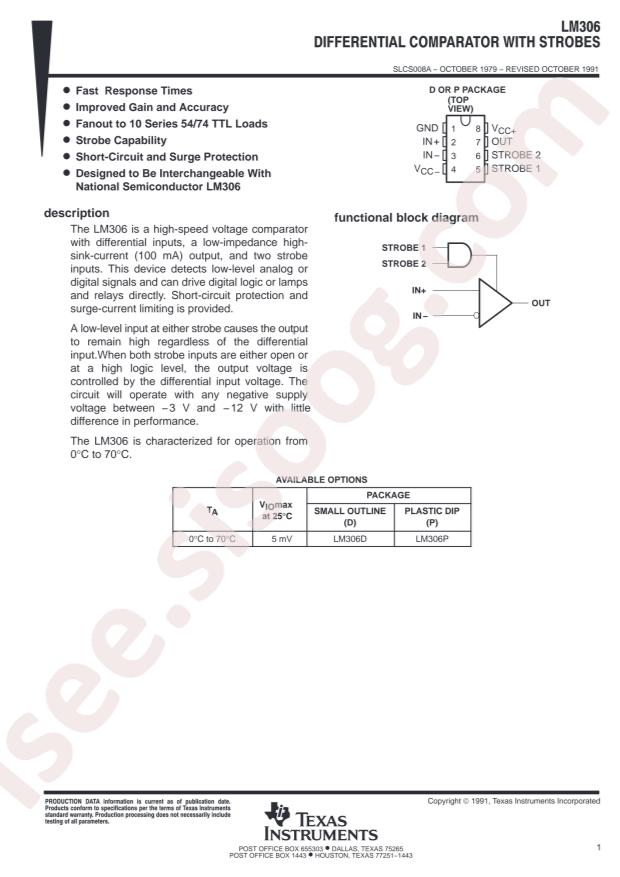

LM306 Datasheet

مشخصات

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Comparators
  • Datasheet: Texas Instruments LM306P
  • Output Type: Push Pull;TTL
  • Supply Voltage: 7.5V~12V
  • Number of Elements: -
  • Operating Temperature: 0°C~+70°C
  • Input Bias Current (Ib): 40uA
  • Input Offset Voltage (Vos): 5mV
  • Input Hysteresis Voltage (Vhys): -
  • Common Mode Rejection Ratio (CMRR): -
  • Package: PDIP-8
  • Manufacturer: Texas Instruments
  • Voltage - Input Offset (Max): 5mV @ ±12V
  • Type: Differential
  • Supplier Device Package: 8-PDIP
  • Mounting Type: Through Hole
  • Current - Quiescent (Max): 10mA
  • Propagation Delay (Max): -
  • Current - Input Bias (Max): 40µA @ ±12V
  • Base Part Number: LM306
  • Packaging: Tube
  • Hysteresis: -
  • Series: -
  • Current - Output (Typ): -
  • CMRR, PSRR (Typ): -
  • Part Status: Active
  • Package / Case: 8-DIP (0.300", 7.62mm)
  • Voltage - Supply, Single/Dual (±): ±7.5V ~ 12V
  • detail: Comparator Differential Push-Pull, TTL 8-PDIP
