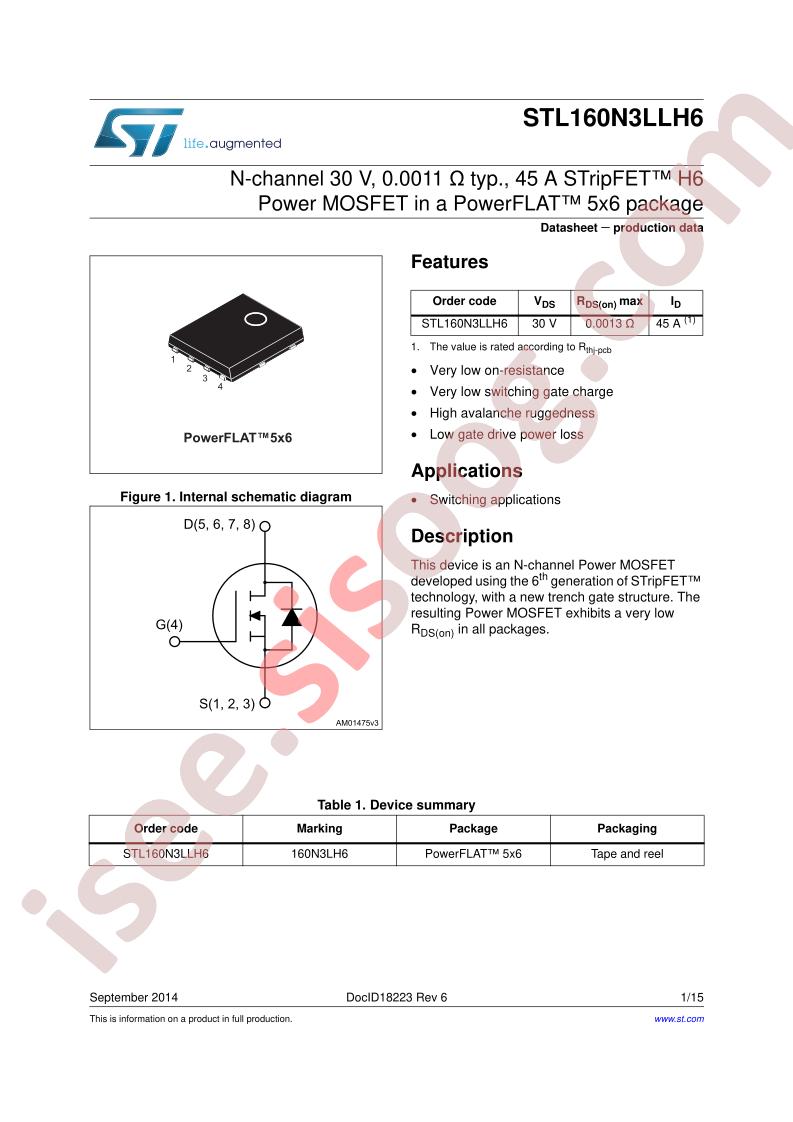

دیتاشیت STL160N3LLH6
مشخصات دیتاشیت
| نام دیتاشیت |
STL160N3LLH6
|
| حجم فایل |
1206.686
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
15
|
مشخصات
-
Manufacturer:
STMicroelectronics
-
Series:
DeepGATE™, STripFET™ VI
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
160A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
-
Rds On (Max) @ Id, Vgs:
1.3mOhm @ 17.5A, 10V
-
Vgs(th) (Max) @ Id:
1V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
61.5nC @ 4.5V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
6375pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
136W (Tc)
-
Operating Temperature:
-55°C ~ 175°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
PowerFlat™ (5x6)
-
Package / Case:
8-PowerVDFN
-
Base Part Number:
STL160
-
detail:
N-Channel 30V 160A (Tc) 136W (Tc) Surface Mount PowerFlat™ (5x6)
