دیتاشیت SN74AS00N
مشخصات دیتاشیت
| نام دیتاشیت |

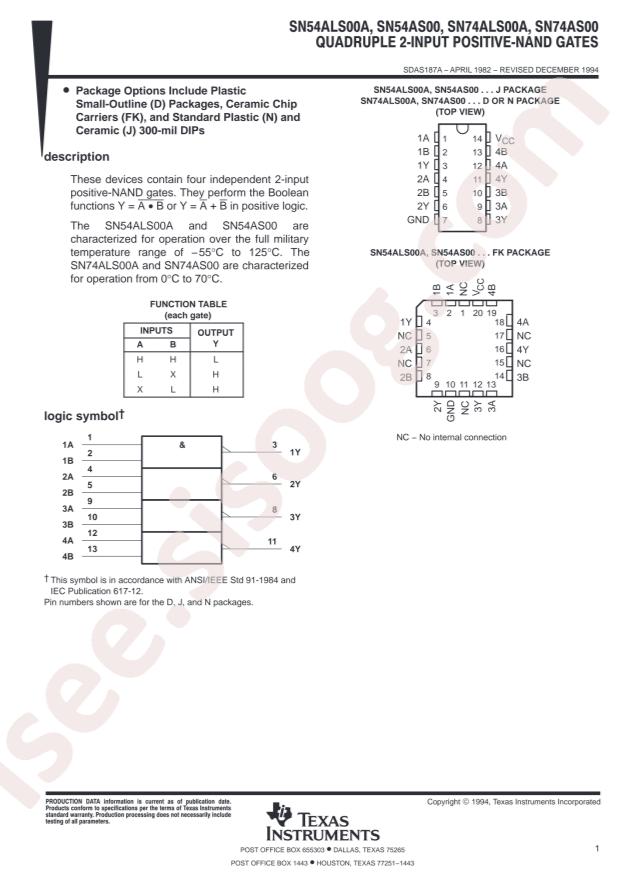

SNx4A(L)S00(A)
|
| حجم فایل |
1215.888
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
21
|
مشخصات
-
RoHS:
true
-
Series:
74AS
-
Category:
Logic ICs/Gates
-
Datasheet:
Texas Instruments SN74AS00N
-
Sink Current:
20mA
-
Source Current:
2mA
-
Supply Voltage:
4.5V~5.5V
-
Logic Gate Type:
NAND Gates
-
Number of Channels:
4
-
Low Level Range (VIL):
0.8V
-
Operating Temperature:
0°C~+70°C
-
High Level Range (VIH):
2V
-
Propagation Delay Time:
4.5ns@5V,50pF
-
Package:
PDIP-14
-
Manufacturer:
Texas Instruments
-
Logic Level - High:
2V
-
Base Part Number:
SN74A
-
Supplier Device Package:
14-PDIP
-
Logic Level - Low:
0.8V
-
Package / Case:
14-DIP (0.300", 7.62mm)
-
Current - Output High, Low:
2mA, 20mA
-
Features:
-
-
Mounting Type:
Through Hole
-
Packaging:
Tube
-
Voltage - Supply:
4.5V ~ 5.5V
-
Number of Circuits:
4
-
Max Propagation Delay @ V, Max CL:
4.5ns @ 5V, 50pF
-
Number of Inputs:
2
-
Part Status:
Active
-
Logic Type:
NAND Gate
-
detail:
NAND Gate IC 4 Channel 14-PDIP
