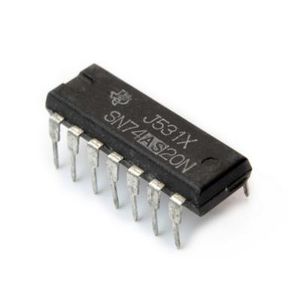

دیتاشیت SN74ALS20AN
مشخصات دیتاشیت
| نام دیتاشیت | SN54/74(ALS,AS)20(A) |
|---|---|
| حجم فایل | 1186.957 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 19 |
دانلود دیتاشیت SN54/74(ALS,AS)20(A) |

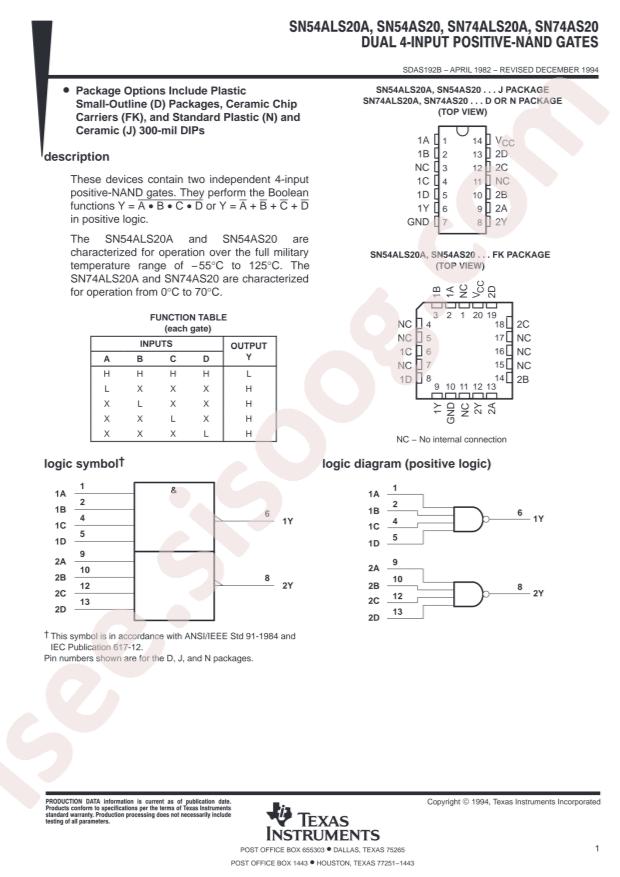

SN54/74(ALS,AS)20(A) Datasheet |
|---|
مشخصات
- RoHS: true
- Series: 74ALS
- Category: Logic ICs/Gates
- Datasheet: Texas Instruments SN74ALS20AN
- Sink Current: 8mA
- Source Current: 400uA
- Supply Voltage: 4.5V~5.5V
- Logic Gate Type: NAND Gates
- Number of Channels: 2
- Low Level Range (VIL): 0.8V
- Operating Temperature: 0°C~+70°C
- High Level Range (VIH): 2V
- Propagation Delay Time: 12.5ns@5V,50pF
- Package: PDIP-14
- Manufacturer: Texas Instruments
- Logic Level - High: 2V
- Base Part Number: SN74ALS2
- Supplier Device Package: 14-PDIP
- Logic Level - Low: 0.8V
- Package / Case: 14-DIP (0.300", 7.62mm)
- Current - Output High, Low: 400µA, 8mA
- Features: -
- Mounting Type: Through Hole
- Packaging: Tube
- Voltage - Supply: 4.5V ~ 5.5V
- Number of Circuits: 2
- Max Propagation Delay @ V, Max CL: 12.5ns @ 5V, 50pF
- Number of Inputs: 4
- Part Status: Active
- Logic Type: NAND Gate
- detail: NAND Gate IC 2 Channel 14-PDIP
