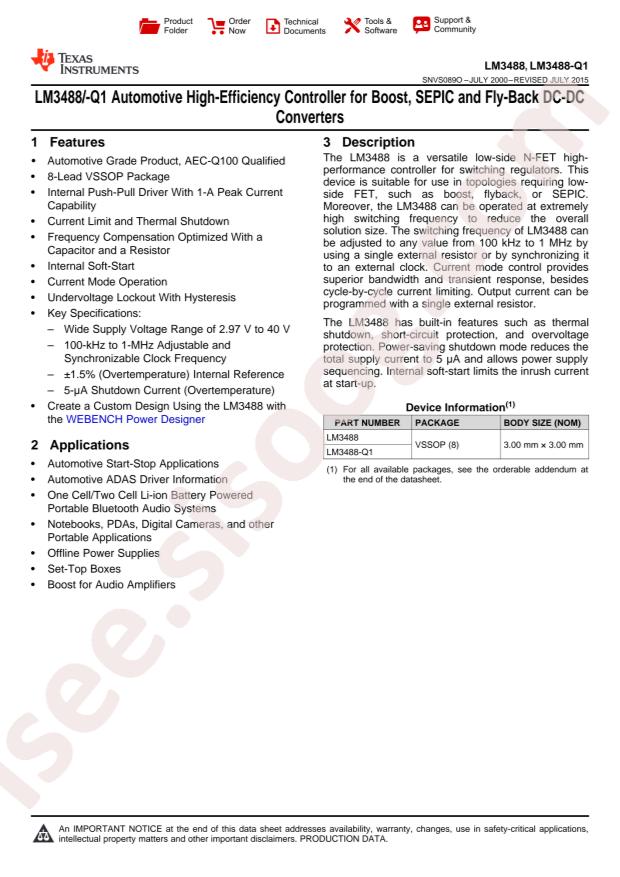

- Datasheet LM3488MM
LM3488MM Datasheet
Datasheet specifications
| Datasheet's name | LM3488MM |
|---|---|
| File size | 94.61 KB |
| File type | |
| Number of pages | 39 |
Download Datasheet LM3488MM |
Download Datasheet |
|---|
Other documentations
Power Management Guide 93 pages
LM3488, LM3488-Q1 39 pages
Technical specifications
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Function: boost converterType;Buck-boost type
- Topology: Boost;Flyback;SEPIC
- Datasheet: Texas Instruments LM3488MM
- Input Voltage: 2.97V~40V
- Duty Cycle (Max): 100%
- Number of Outputs: 1
- Switching Frequency: 1MHz
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO
- Package: VSSOP-8-0.65mm
- Manufacturer: Texas Instruments
- Output Phases: 1
- Series: -
- Output Configuration: Positive
- Output Type: Transistor Driver
- Clock Sync: Yes
- Packaging: Cut Tape (CT)
- Synchronous Rectifier: No
- Voltage - Supply (Vcc/Vdd): 2.97V ~ 40V
- Supplier Device Package: 8-VSSOP
- Serial Interfaces: -
- Frequency - Switching: 100kHz ~ 1MHz
- Mounting Type: Surface Mount
- Base Part Number: LM3488
- Part Status: Active
- Control Features: Enable, Frequency Control
- Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
