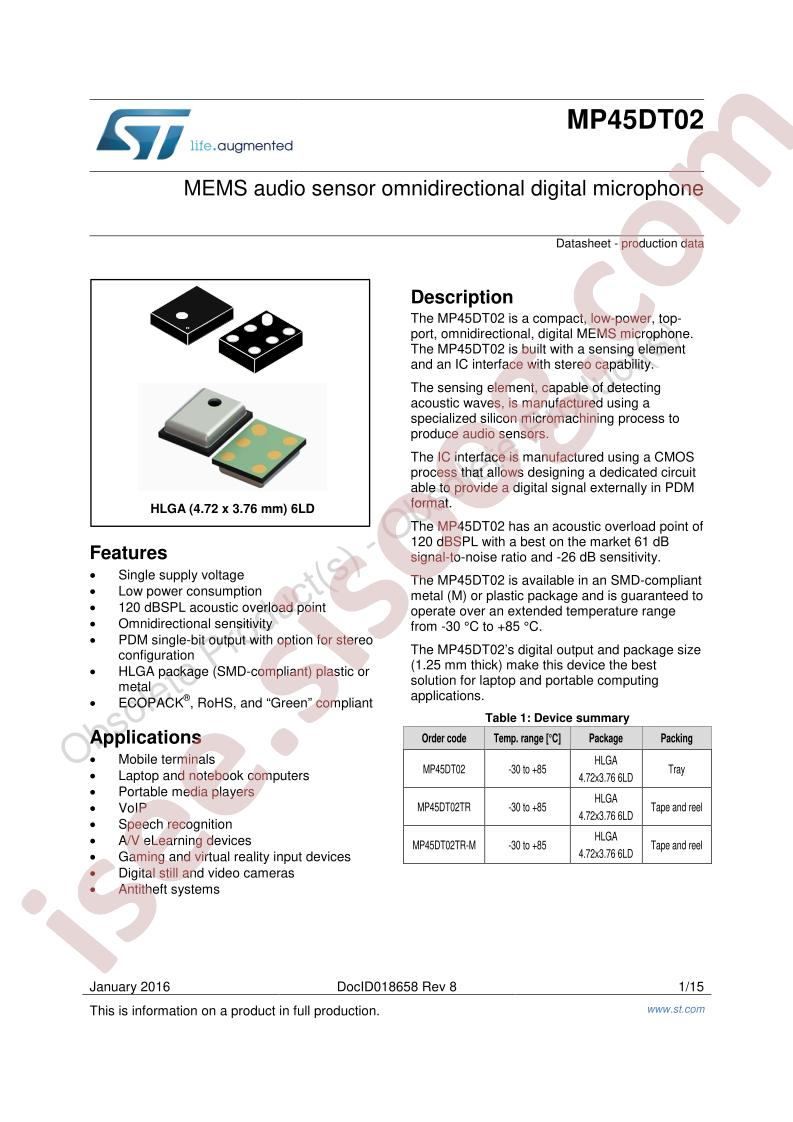

MP45DT02 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
MP45DT02
|
|
حجم فایل
|
432.45
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
15
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tray
-
Part Status:
Obsolete
-
Type:
MEMS (Silicon)
-
Output Type:
Digital, PDM
-
Direction:
Omnidirectional
-
Frequency Range:
100Hz ~ 10kHz
-
Sensitivity:
-26dB ±3dB @ 94dB SPL
-
S/N Ratio:
61dB
-
Voltage - Rated:
1.8V
-
Voltage Range:
1.64V ~ 3.6V
-
Current - Supply:
650µA
-
Port Location:
Top
-
Termination:
Solder Pads
-
Size / Dimension:
0.186" L x 0.148" W (4.72mm x 3.76mm)
-
Height (Max):
0.054" (1.38mm)
-
Shape:
Rectangular
-
Base Part Number:
MP45
-
detail:
100Hz ~ 10kHz Digital, PDM Microphone MEMS (Silicon) 1.64V ~ 3.6V Omnidirectional (-26dB ±3dB @ 94dB SPL) Solder Pads
