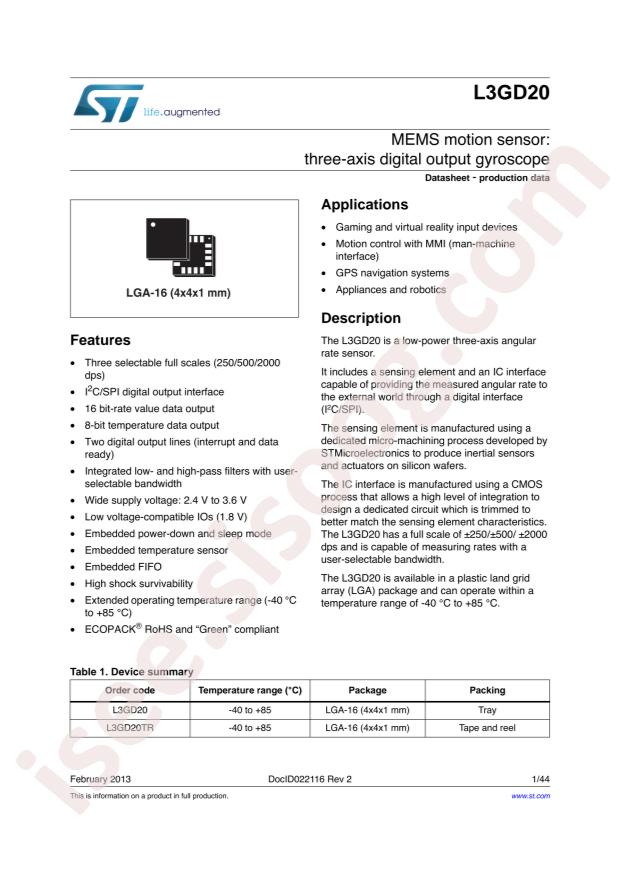

دیتاشیت L3GD20TR
مشخصات دیتاشیت
| نام دیتاشیت |
L3GD20TR
|
| حجم فایل |
77.87
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
44
|
مشخصات
-
RoHS:
true
-
Category:
Sensors/Attitude Sensor/Gyroscope
-
Datasheet:
STMicroelectronics L3GD20TR
-
Package:
LGA-16
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Obsolete
-
Type:
Digital
-
Axis:
X (Pitch), Y (Roll), Z (Yaw)
-
Range °/s:
±250, 500, 2000
-
Sensitivity (LSB/(°/s)):
8.75 ~ 70
-
Sensitivity (mV/°/s):
-
-
Bandwidth:
47.5Hz ~ 380Hz
-
Output Type:
I²C, SPI
-
Voltage - Supply:
2.4V ~ 3.6V
-
Current - Supply:
6.1mA
-
Features:
Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Package / Case:
16-VFLGA
-
Base Part Number:
L3GD20
-
detail:
Gyroscope X (Pitch), Y (Roll), Z (Yaw) ±250, 500, 2000 47.5Hz ~ 380Hz I²C, SPI 16-LGA (4x4)
