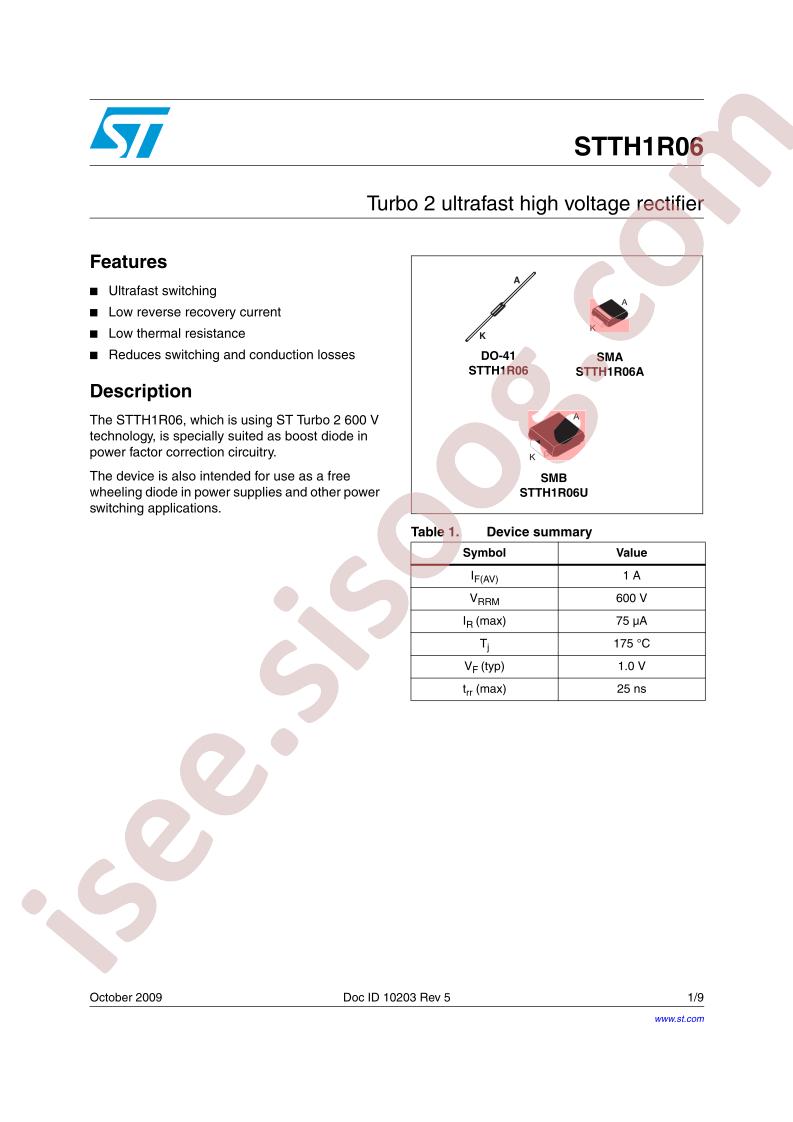

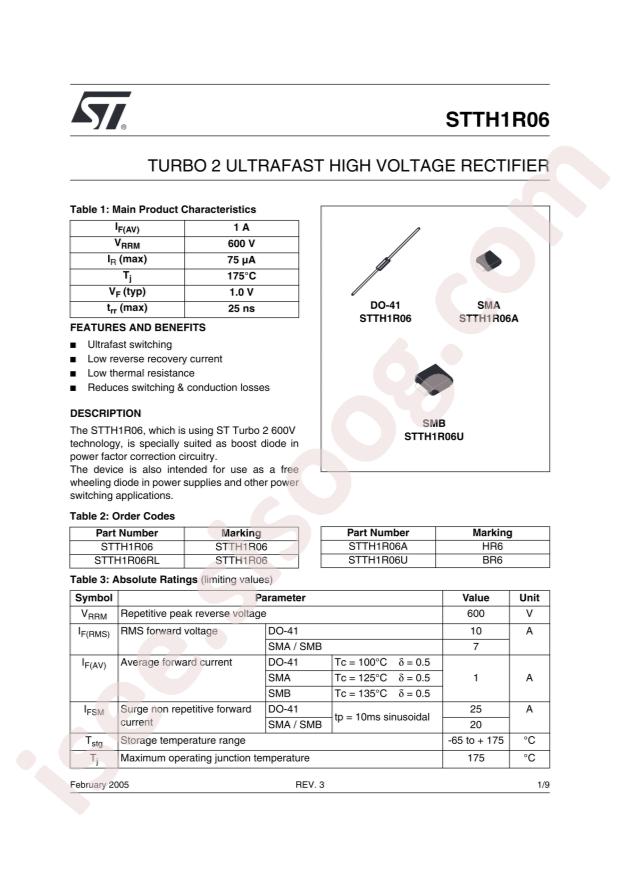

STTH1R06A دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STTH1R06A
|
|
حجم فایل
|
73.595
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
9
|
مشخصات فنی
-
RoHS:
true
-
Category:
Diodes/Diodes - Fast Recovery Rectifiers
-
Datasheet:
STMicroelectronics STTH1R06A
-
Diode Configuration:
-
-
Reverse Voltage (Vr):
600V
-
Operating Temperature:
+175°C@(Tj)
-
Forward Voltage (Vf@If):
1.7V@1A
-
Reverse Leakage Current:
10uA@600V
-
Reverse Recovery Time (trr):
30ns
-
Average Rectified Current (Io):
1A
-
Package:
SMA
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Diode Type:
Standard
-
Voltage - DC Reverse (Vr) (Max):
600V
-
Current - Average Rectified (Io):
1A
-
Voltage - Forward (Vf) (Max) @ If:
1.7V @ 1A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
1µA @ 600V
-
Capacitance @ Vr, F:
-
-
Mounting Type:
Surface Mount
-
Package / Case:
DO-214AC, SMA
-
Supplier Device Package:
SMA
-
Operating Temperature - Junction:
175°C (Max)
-
Base Part Number:
STTH1
