دیتاشیت SN74ALS645AN

مشخصات دیتاشیت

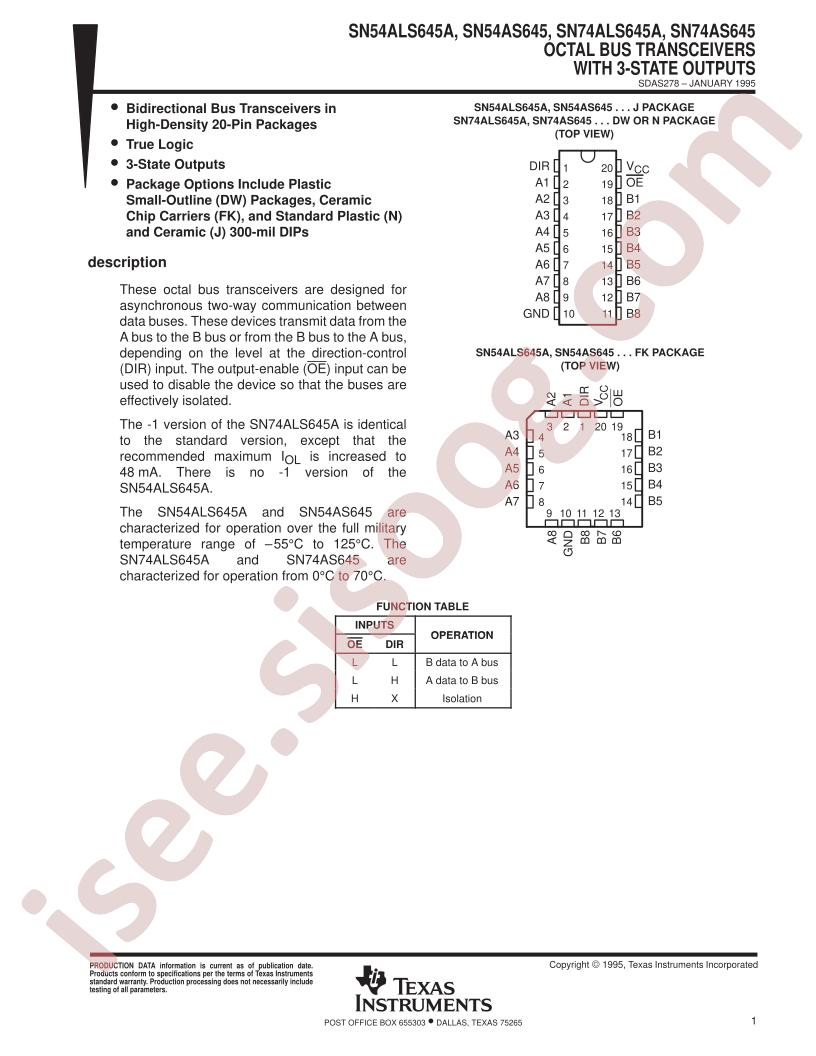

دانلود دیتاشیت SN54ALS645A, SN54AS645, SN74ALS645A, SN74AS645	SN54ALS645A, SN54AS645, SN74ALS645A, SN74AS645 Datasheet

RoHS: true
Category: Logic ICs/Buffer/Driver/Transceiver
Datasheet: Texas Instruments SN74ALS645AN
Input type: -
output type: Tri-State
Logic Family: 74ALS
Sink Current: 24mA
Source Current: 15mA
Supply Voltage: 4.5V~5.5V
Number of Elements: 1
Operating Temperature: 0°C~+70°C
Number of Bits per Element: 8
Package: PDIP-20
Manufacturer: Texas Instruments
Voltage - Supply: 4.5V ~ 5.5V
Package / Case: 20-DIP (0.300", 7.62mm)
Series: 74ALS
Base Part Number: SN74ALS6
Supplier Device Package: 20-PDIP
Mounting Type: Through Hole
Logic Type: Transceiver, Non-Inverting
Packaging: Tube
Current - Output High, Low: 15mA, 24mA
Part Status: Active
detail: Transceiver, Non-Inverting 1 Element 8 Bit per Element 3-State Output 20-PDIP
