- دیتاشیت SN74ALS534AN

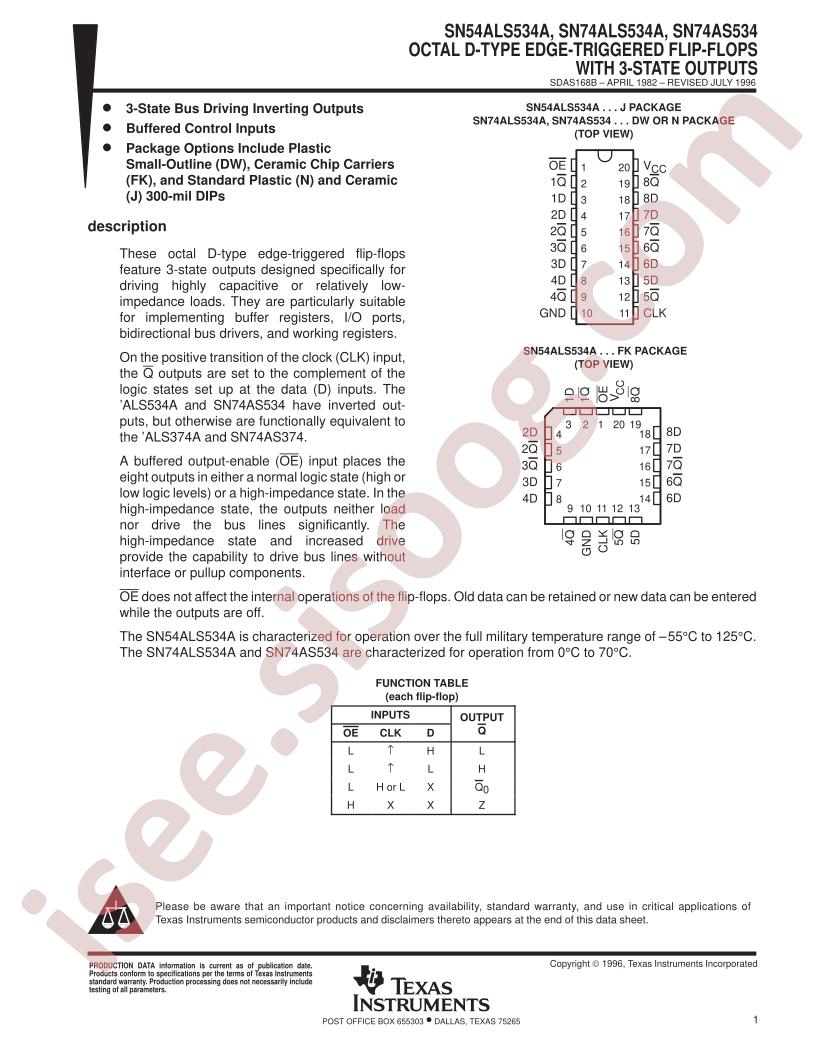

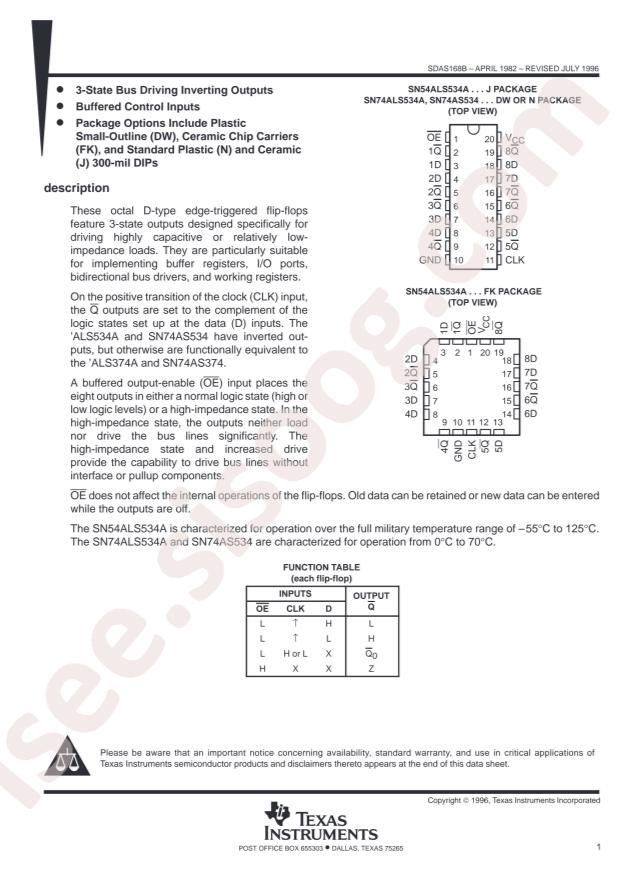

SN74ALS534AN دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SN74ALS534AN |
|---|---|
| حجم فایل | 81.25 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 16 |
دانلود دیتاشیت SN74ALS534AN |
دانلود دیتاشیت |
|---|
سایر مستندات
SN54ALS534A, SN74ALS534A, SN74AS534 16 pages
مشخصات فنی
- RoHS: true
- Type: D-Type
- Series: 74ALS
- Category: Logic ICs/Flip Flops
- Function: Standard
- Datasheet: Texas Instruments SN74ALS534AN
- Output Type: Tri-State;Inverted
- Sink Current: 24mA
- Trigger Type: 上升沿
- Source Current: 2.6mA
- Supply Voltage: 4.5V~5.5V
- Clock Frequency: 35MHz
- Input Capacitance: -
- Number of Elements: 1
- Operating Temperature: 0°C~+70°C
- Quiescent Current (Iq): 19mA
- Maximum Propagation Delay: 16ns@5V,50pF
- Number of Bits per Element: 8
- Package: PDIP-20
- Manufacturer: Texas Instruments
- Max Propagation Delay @ V, Max CL: 16ns @ 5V, 50pF
- Package / Case: 20-DIP (0.300", 7.62mm)
- Current - Quiescent (Iq): 19mA
- Base Part Number: SN74ALS5
- Supplier Device Package: 20-PDIP
- Packaging: Tube
- Current - Output High, Low: 2.6mA, 24mA
- Mounting Type: Through Hole
- Voltage - Supply: 4.5V ~ 5.5V
- Part Status: Active
- detail: Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-DIP (0.300", 7.62mm)
