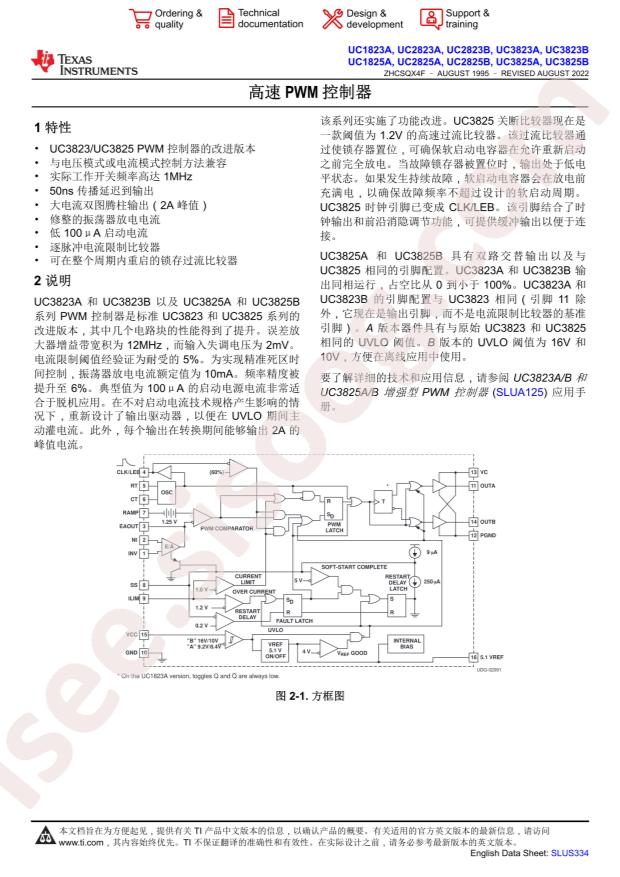

دیتاشیت UC3825AN
مشخصات دیتاشیت
| نام دیتاشیت | UC1823A/25A,UC2823A-B/25A-B, UC3823A-B/25A-B |
|---|---|
| حجم فایل | 976.098 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 18 |
دانلود دیتاشیت UC1823A/25A,UC2823A-B/25A-B, UC3823A-B/25A-B |
UC1823A/25A,UC2823A-B/25A-B, UC3823A-B/25A-B Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Function: boost converterType;Buck-boost type
- Topology: Boost;Flyback;Full-Bridge;Half-Bridge;Push-pull
- Datasheet: Texas Instruments UC3825AN
- Input Voltage: 8.4V~22V
- Duty Cycle (Max): 50%
- Number of Outputs: 2
- Switching Frequency: 1MHz
- Operating Temperature: 0°C~+70°C@(TA)
- Synchronous Rectification: NO
- Package: PDIP-16
- Manufacturer: Texas Instruments
- Packaging: Tube
- Series: -
- Supplier Device Package: 16-PDIP
- Serial Interfaces: -
- Control Features: Current Limit, Frequency Control, Ramp, Soft Start
- Part Status: Active
- Base Part Number: UC382
- Synchronous Rectifier: No
- Clock Sync: No
- Output Configuration: Positive
- Mounting Type: Through Hole
- Output Phases: 1
- Output Type: Transistor Driver
- Package / Case: 16-DIP (0.300", 7.62mm)
- Voltage - Supply (Vcc/Vdd): 8.4V ~ 22V
- Frequency - Switching: 400kHz ~ 1MHz
- detail: Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 16-PDIP
