دیتاشیت UCC28701DBVT

UCC2870x

مشخصات دیتاشیت

نام دیتاشیت UCC2870x
حجم فایل 2059.144 کیلوبایت
نوع فایل pdf
تعداد صفحات 36

دانلود دیتاشیت UCC2870x

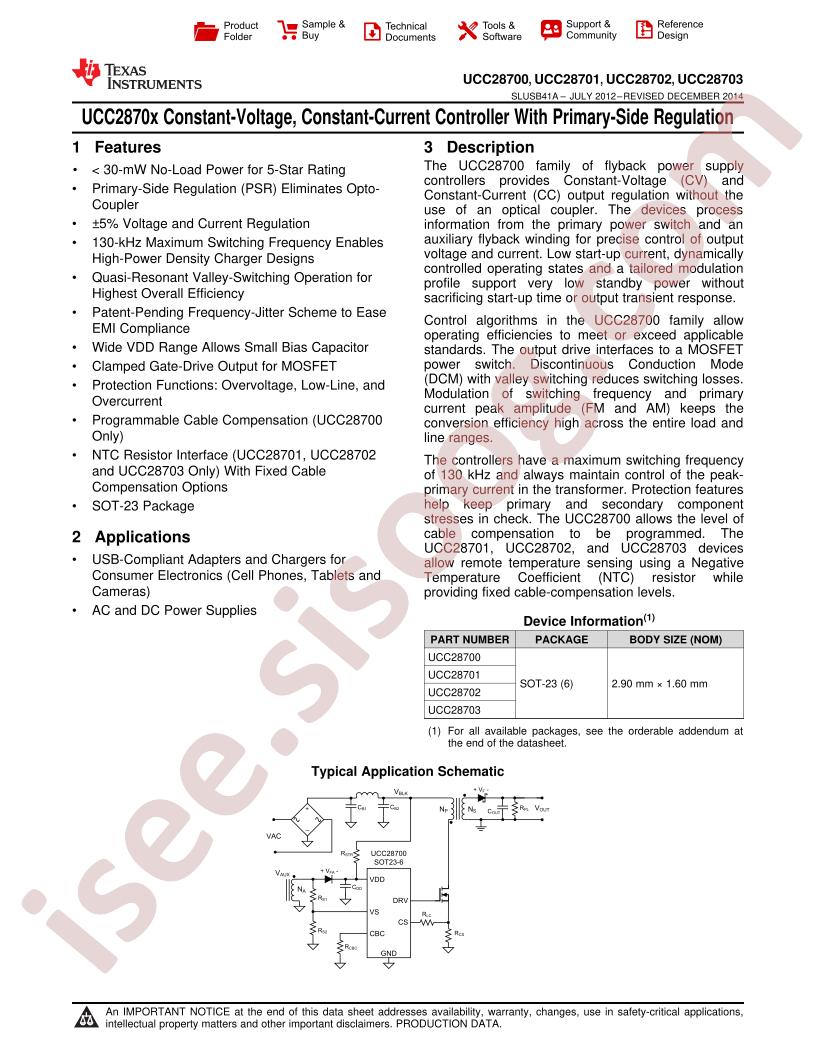

UCC2870x Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/AC-DC Controllers & Regulators
  • Topology: Flyback
  • Datasheet: Texas Instruments UCC28701DBVT
  • Supply Voltage: 9V~35V
  • Output Isolation: Isolation
  • Switching Frequency: 1kHz~130kHz
  • Operating Temperature: -20°C~+125°C@(Tj)
  • Package: SOT-23-6
  • Manufacturer: Texas Instruments
  • Base Part Number: UCC287
  • Mounting Type: Surface Mount
  • Series: -
  • Duty Cycle: -
  • Internal Switch(s): No
  • Supplier Device Package: SOT-23-6
  • Voltage - Breakdown: -
  • Voltage - Start Up: 21V
  • Packaging: Cut Tape (CT)
  • Package / Case: SOT-23-6
  • Control Features: -
  • Voltage - Supply (Vcc/Vdd): 9V ~ 35V
  • Frequency - Switching: 1kHz ~ 130kHz
  • Part Status: Active
  • Fault Protection: Current Limiting, Over Voltage
  • detail: Converter Offline Flyback Topology 1kHz ~ 130kHz SOT-23-6
