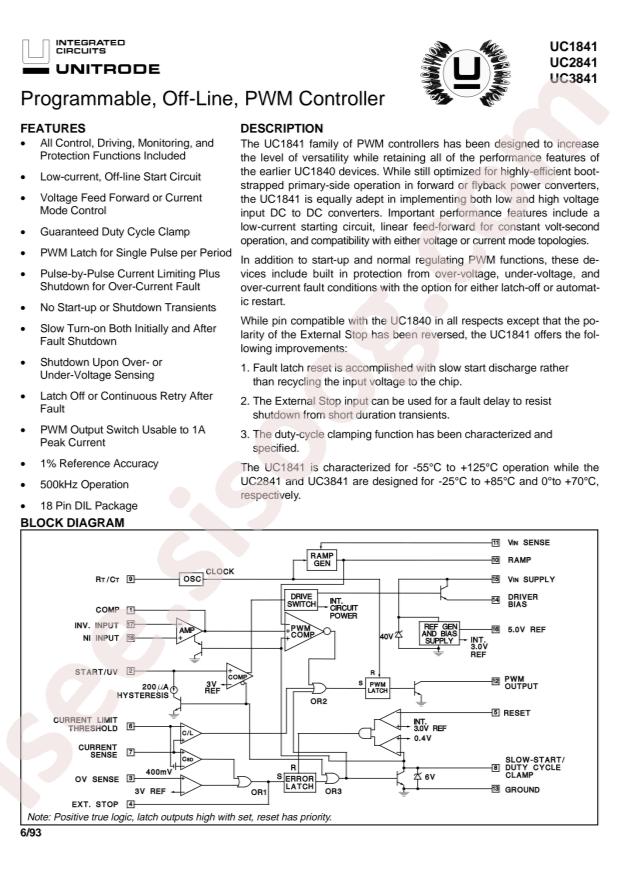

UC3841N دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | UC3841N |
|---|---|
| حجم فایل | 110.421 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 12 |
دانلود دیتاشیت UC3841N |
دانلود دیتاشیت |
|---|
سایر مستندات
UC1841, 2841, 3841 11 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/DC-DC Controllers
- Function: boost converterType;Buck-boost type
- Topology: Boost;Flyback
- Datasheet: Texas Instruments UC3841N
- Input Voltage: 8V~32V
- Duty Cycle (Max): 95%
- Number of Outputs: 1
- Switching Frequency: 500kHz
- Operating Temperature: 0°C~+70°C@(TA)
- Synchronous Rectification: NO
- Package: PDIP-18
- Manufacturer: Texas Instruments
- Packaging: Tube
- Series: -
- Supplier Device Package: 18-PDIP
- Serial Interfaces: -
- Control Features: Current Limit, Enable, Frequency Control, Ramp, Reset, Soft Start
- Part Status: Active
- Base Part Number: UC384
- Synchronous Rectifier: No
- Clock Sync: No
- Output Configuration: Positive, Isolation Capable
- Mounting Type: Through Hole
- Output Phases: 1
- Output Type: Transistor Driver
- Package / Case: 18-DIP (0.300", 7.62mm)
- Voltage - Supply (Vcc/Vdd): 8V ~ 32V
- Frequency - Switching: 500kHz
- detail: Boost, Flyback, Forward Converter Regulator Positive, Isolation Capable Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 18-PDIP
