دیتاشیت LMC7215IM5
مشخصات دیتاشیت
| نام دیتاشیت | LMC7215/LMC7225 |
|---|---|
| حجم فایل | 2085.661 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 22 |
دانلود دیتاشیت LMC7215/LMC7225 |

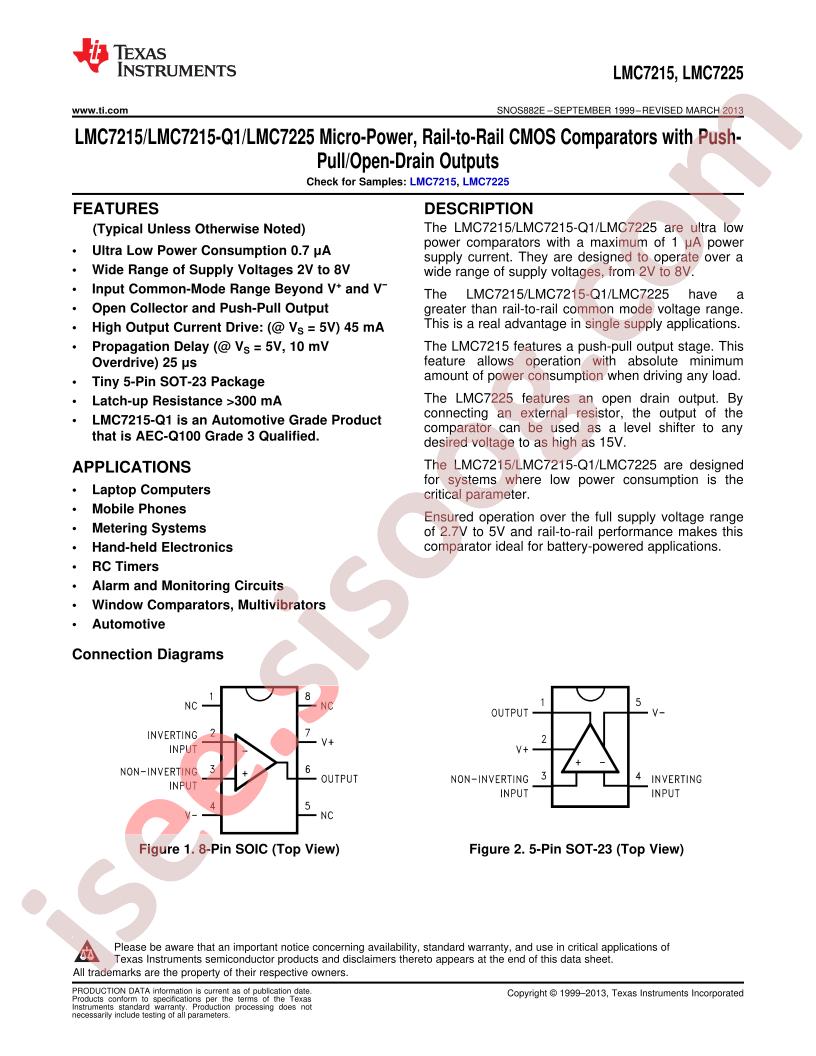

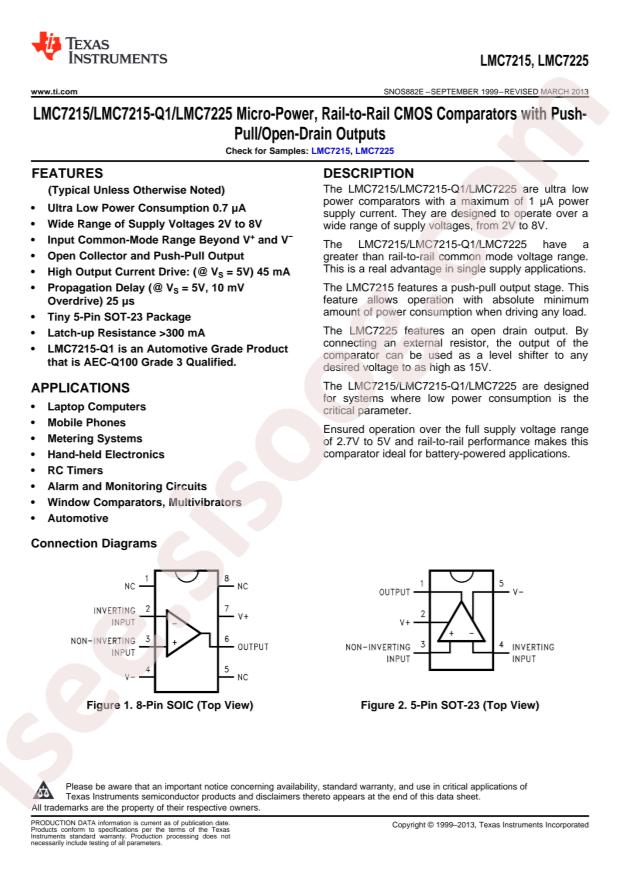

LMC7215/LMC7225 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Operational Amplifier/Comparator/Comparators
- Datasheet: Texas Instruments LMC7215IM5
- Output Type: Push Pull
- Supply Voltage: 2V~8V;1V~4V
- Number of Elements: -
- Operating Temperature: -40°C~+85°C
- Input Bias Current (Ib): -
- Input Offset Voltage (Vos): 6mV
- Input Hysteresis Voltage (Vhys): -
- Common Mode Rejection Ratio (CMRR): 68dB
- Package: SOT-23-5
- Manufacturer: Texas Instruments
- Base Part Number: LMC7215
- Voltage - Input Offset (Max): 6mV @ 5V
- CMRR, PSRR (Typ): 80dB CMRR, 90dB PSRR
- Series: -
- Supplier Device Package: SOT-23-5
- Propagation Delay (Max): 24µs
- Hysteresis: -
- Mounting Type: Surface Mount
- Type: General Purpose
- Current - Output (Typ): 30mA
- Package / Case: SC-74A, SOT-753
- Part Status: Active
- Packaging: Cut Tape (CT)
- Current - Quiescent (Max): 1µA
- Current - Input Bias (Max): -
- Voltage - Supply, Single/Dual (±): 2V ~ 8V, ±1V ~ 4V
