دیتاشیت SN74AS21N
مشخصات دیتاشیت
| نام دیتاشیت | SN54/74(ALS,AS)21(A) |
|---|---|
| حجم فایل | 1148.923 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 17 |
دانلود دیتاشیت SN54/74(ALS,AS)21(A) |

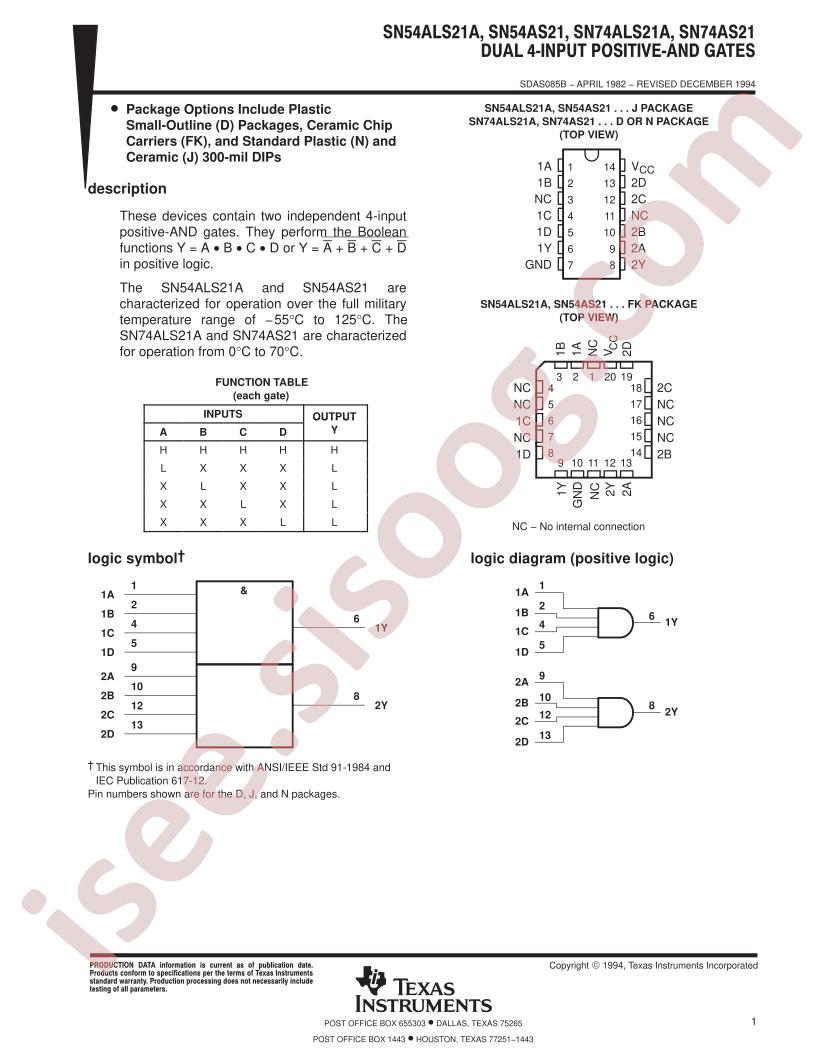

SN54/74(ALS,AS)21(A) Datasheet |
|---|
مشخصات
- Voltage - Supply: 4.5V ~ 5.5V
- Logic Level - Low: 0.8V
- Number of Circuits: 2
- Package / Case: 14-DIP (0.300", 7.62mm)
- Series: 74AS
- Max Propagation Delay @ V, Max CL: 6ns @ 5V, 50pF
- Number of Inputs: 4
- Base Part Number: SN74AS2
- Mounting Type: Through Hole
- Features: -
- Supplier Device Package: 14-PDIP
- Logic Type: AND Gate
- Packaging: Tube
- Manufacturer: Texas Instruments
- Operating Temperature: 0°C ~ 70°C
- Current - Output High, Low: 2mA, 20mA
- Part Status: Active
- Logic Level - High: 2V
- detail: AND Gate IC 2 Channel 14-PDIP
