دیتاشیت SN74ALS153N
مشخصات دیتاشیت
| نام دیتاشیت | SN54ALS153, SN74ALS153, SN74AS153 |
|---|---|
| حجم فایل | 813.652 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 17 |
دانلود دیتاشیت SN54ALS153, SN74ALS153, SN74AS153 |

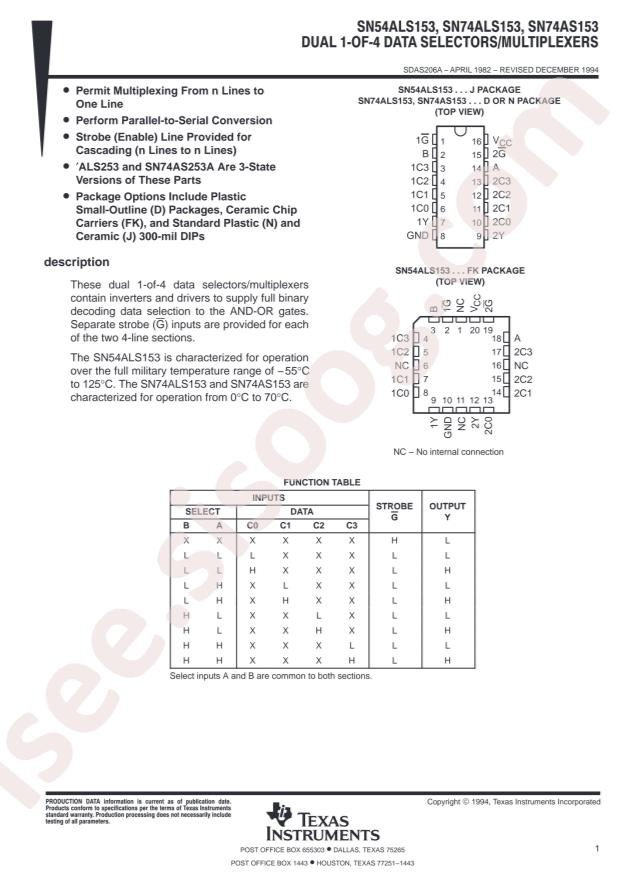

SN54ALS153, SN74ALS153, SN74AS153 Datasheet |
|---|
مشخصات
- RoHS: true
- Type: Multiplexers
- Category: Logic ICs/Signal Switches / Encoders & Decoders / Multiplexers
- Datasheet: Texas Instruments SN74ALS153N
- Sink Current: 24mA
- Source Current: 2.6mA
- Supply Voltage: 4.5V~5.5V
- Operating temperature: 0°C~+70°C
- Voltage Supply Source: Single supply
- Package: PDIP-16
- Manufacturer: Texas Instruments
- Voltage - Supply: 4.5V ~ 5.5V
- Base Part Number: SN74ALS1
- Circuit: 2 x 4:1
- Series: 74ALS
- Current - Output High, Low: 2.6mA, 24mA
- Independent Circuits: 1
- Mounting Type: Through Hole
- Supplier Device Package: 16-PDIP
- Package / Case: 16-DIP (0.300", 7.62mm)
- Packaging: Tube
- Part Status: Active
- detail: Multiplexer 2 x 4:1 16-PDIP
