دیتاشیت TPS79425DGNR
مشخصات دیتاشیت
| نام دیتاشیت |

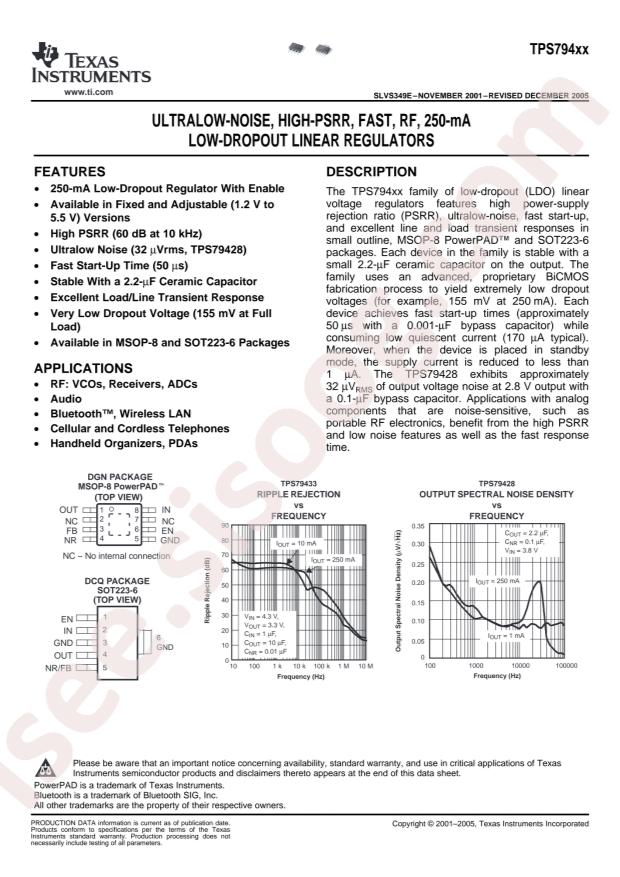

TPS794xx
|
| حجم فایل |
1323.208
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
26
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
Texas Instruments TPS79425DGNR
-
Output Current:
250mA
-
Output Voltage:
2.5V
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
5.5V
-
Operating Temperature:
-40°C~+125°C
-
Quiescent Current (Ground Current):
220uA
-
Package:
MSOP-8-EP
-
Manufacturer:
Texas Instruments
-
Voltage - Input (Max):
5.5V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
-
-
Output Configuration:
Positive
-
Series:
-
-
Current - Quiescent (Iq):
220µA
-
Base Part Number:
TPS794
-
Supplier Device Package:
8-MSOP-PowerPad
-
Mounting Type:
Surface Mount
-
Voltage - Output (Min/Fixed):
2.5V
-
Number of Regulators:
1
-
PSRR:
65dB ~ 40dB (100Hz ~ 100kHz)
-
Output Type:
Fixed
-
Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
-
Packaging:
Cut Tape (CT)
-
Protection Features:
Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
-
Control Features:
Enable
-
Part Status:
Active
-
Current - Output:
250mA
-
detail:
Linear Voltage Regulator IC 1 Output 250mA 8-MSOP-PowerPad
