TLC393CPWR دیتاشیت

TLC393CPWR

مشخصات دیتاشیت

نام دیتاشیت TLC393CPWR
حجم فایل 91.602 کیلوبایت
نوع فایل pdf
تعداد صفحات 34

دانلود دیتاشیت TLC393CPWR

دانلود دیتاشیت

سایر مستندات

TLC193, TLC393 33 pages

مشخصات فنی

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Comparators
  • Datasheet: Texas Instruments TLC393CPWR
  • Output Type: MOS;Open Drain
  • Supply Voltage: 3V~16V
  • Number of Elements: -
  • Operating Temperature: 0°C~+70°C
  • Input Bias Current (Ib): 5pA
  • Input Offset Voltage (Vos): 5mV
  • Input Hysteresis Voltage (Vhys): -
  • Common Mode Rejection Ratio (CMRR): 84dB
  • Package: TSSOP-8
  • Manufacturer: Texas Instruments
  • Base Part Number: TLC393
  • Voltage - Input Offset (Max): 5mV @ 10V
  • CMRR, PSRR (Typ): 84dB CMRR
  • Series: LinCMOS™
  • Supplier Device Package: 8-TSSOP
  • Propagation Delay (Max): 4.5µs
  • Hysteresis: -
  • Mounting Type: Surface Mount
  • Type: General Purpose
  • Current - Output (Typ): 20mA
  • Package / Case: 8-TSSOP (0.173", 4.40mm Width)
  • Part Status: Active
  • Packaging: Cut Tape (CT)
  • Current - Quiescent (Max): 40µA
  • Current - Input Bias (Max): 5pA @ 5V
  • Voltage - Supply, Single/Dual (±): 3V ~ 16V
  • detail: Comparator General Purpose MOS, Open-Drain 8-TSSOP

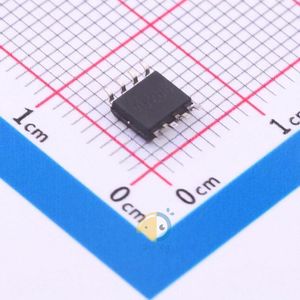

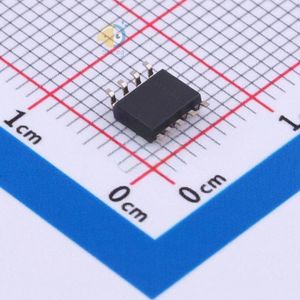

محصولات مشابه
