SN74LVC1G14DBVR دیتاشیت

SN74LVC1G14DBVR

مشخصات دیتاشیت

نام دیتاشیت SN74LVC1G14DBVR
حجم فایل 96.08 کیلوبایت
نوع فایل pdf
تعداد صفحات 27

دانلود دیتاشیت SN74LVC1G14DBVR

دانلود دیتاشیت

سایر مستندات

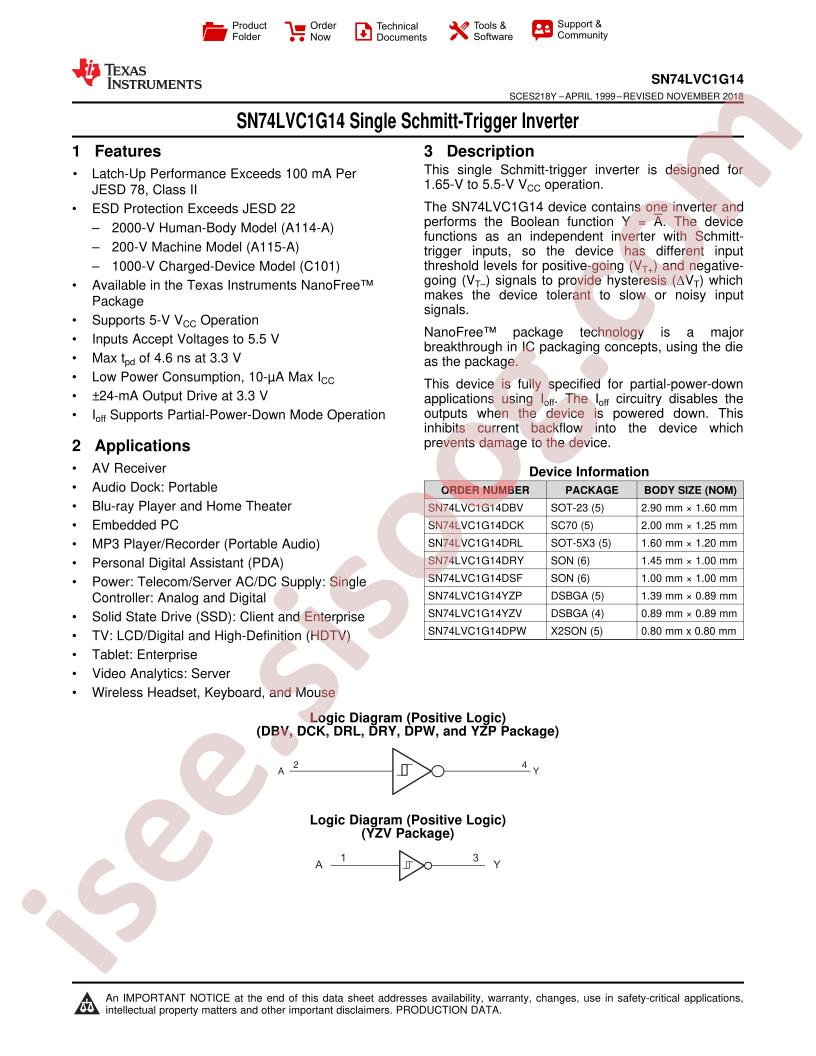

SN74LVC1G14 43 pages

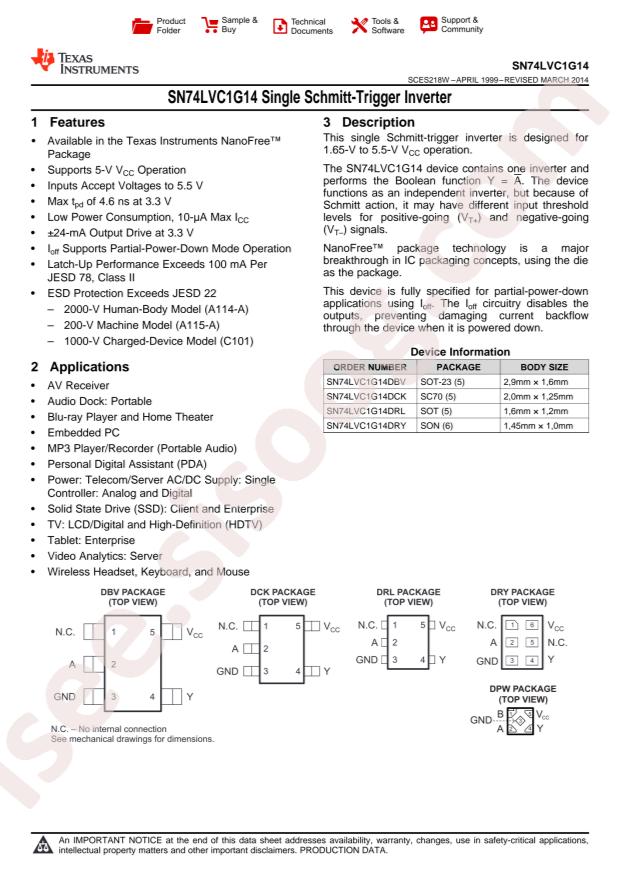

SN74LVC1G14DBVR 11 pages

مشخصات فنی

  • RoHS: true
  • Series: 74LVC
  • Category: Logic ICs/Inverters
  • Datasheet: UMW(Youtai Semiconductor Co., Ltd.) SN74LVC1G14DBVR
  • Input Type: Schmitt Trigger
  • Sink Current: 32mA
  • Source Current: 32mA
  • Number of Inputs: 1
  • Number of Circuits: 1
  • Supply Current (Max): 10uA
  • Low level range (VIL): 0.5V~1.9V
  • Max Propagation Delay: 20ns@5V,15pF
  • Operating Temperature: -40°C~+105°C
  • High level range (VIH): 1V~3V
  • Supply Voltage(Single): 1.65V~5.5V
  • Package: SOT-23-5
  • Manufacturer: UMW(Youtai Semiconductor Co., Ltd.)
  • Voltage - Supply: 1.65V ~ 5.5V
  • Logic Level - Low: 0.39V ~ 1.87V
  • Package / Case: SC-74A, SOT-753
  • Max Propagation Delay @ V, Max CL: 5ns @ 5V, 50pF
  • Base Part Number: SN74LVC1G
  • Mounting Type: Surface Mount
  • Current - Quiescent (Max): 10µA
  • Supplier Device Package: SOT-23-5
  • Logic Type: Inverter
  • Packaging: Cut Tape (CT)
  • Features: Schmitt Trigger
  • Current - Output High, Low: 32mA, 32mA
  • Part Status: Active
  • Logic Level - High: 1.16V ~ 3.33V
