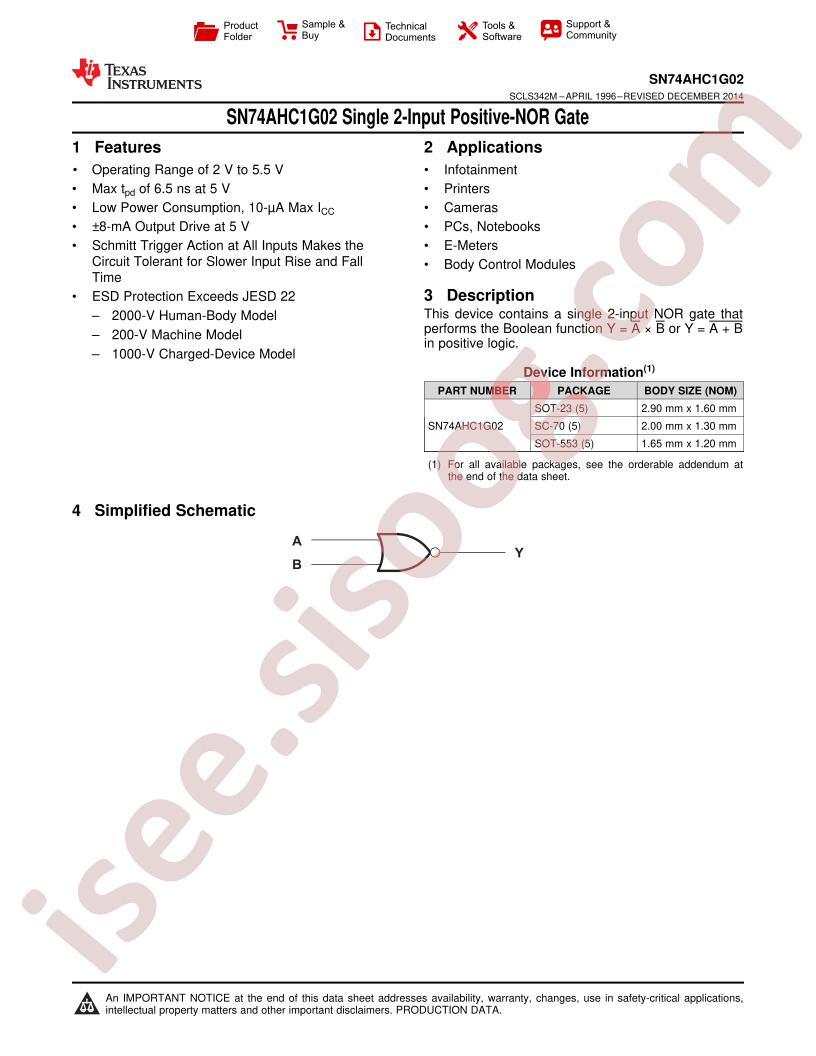

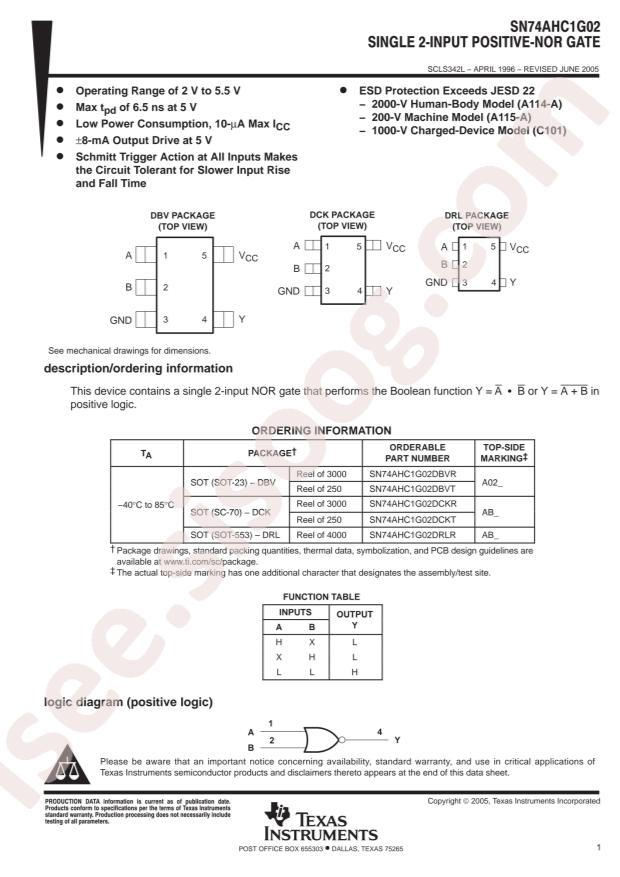

دیتاشیت SN74AHC1G02DBVR
مشخصات دیتاشیت
| نام دیتاشیت |
SN74AHC1G02
|
| حجم فایل |
1188.52
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
23
|
مشخصات
-
RoHS:
true
-
Series:
74AHC
-
Category:
Logic ICs/Gates
-
Datasheet:
Texas Instruments SN74AHC1G02DBVR
-
Sink Current:
8mA
-
Source Current:
8mA
-
Supply Voltage:
2V~5.5V
-
Logic Gate Type:
NORGate
-
Number of Channels:
1
-
Low Level Range (VIL):
0.5V~1.65V
-
Operating Temperature:
-40°C~+85°C
-
High Level Range (VIH):
1.5V~3.85V
-
Propagation Delay Time:
7.5ns@5V,50pF
-
Quiescent Current (Max):
1uA
-
Package:
SOT-23-5
-
Manufacturer:
Texas Instruments
-
Voltage - Supply:
2V ~ 5.5V
-
Logic Level - Low:
0.5V ~ 1.65V
-
Number of Circuits:
1
-
Package / Case:
SC-74A, SOT-753
-
Max Propagation Delay @ V, Max CL:
7.5ns @ 5V, 50pF
-
Number of Inputs:
2
-
Base Part Number:
SN74AHC1
-
Mounting Type:
Surface Mount
-
Current - Quiescent (Max):
1µA
-
Supplier Device Package:
SOT-23-5
-
Logic Type:
NOR Gate
-
Packaging:
Cut Tape (CT)
-
Features:
-
-
Current - Output High, Low:
8mA, 8mA
-
Part Status:
Active
-
Logic Level - High:
1.5V ~ 3.85V
-
detail:
NOR Gate IC 1 Channel SOT-23-5
