دیتاشیت SN74HC08PWRE4
مشخصات دیتاشیت
| نام دیتاشیت | SN54HC08, SN74HC08 |
|---|---|
| حجم فایل | 1367.758 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 30 |
دانلود دیتاشیت SN54HC08, SN74HC08 |

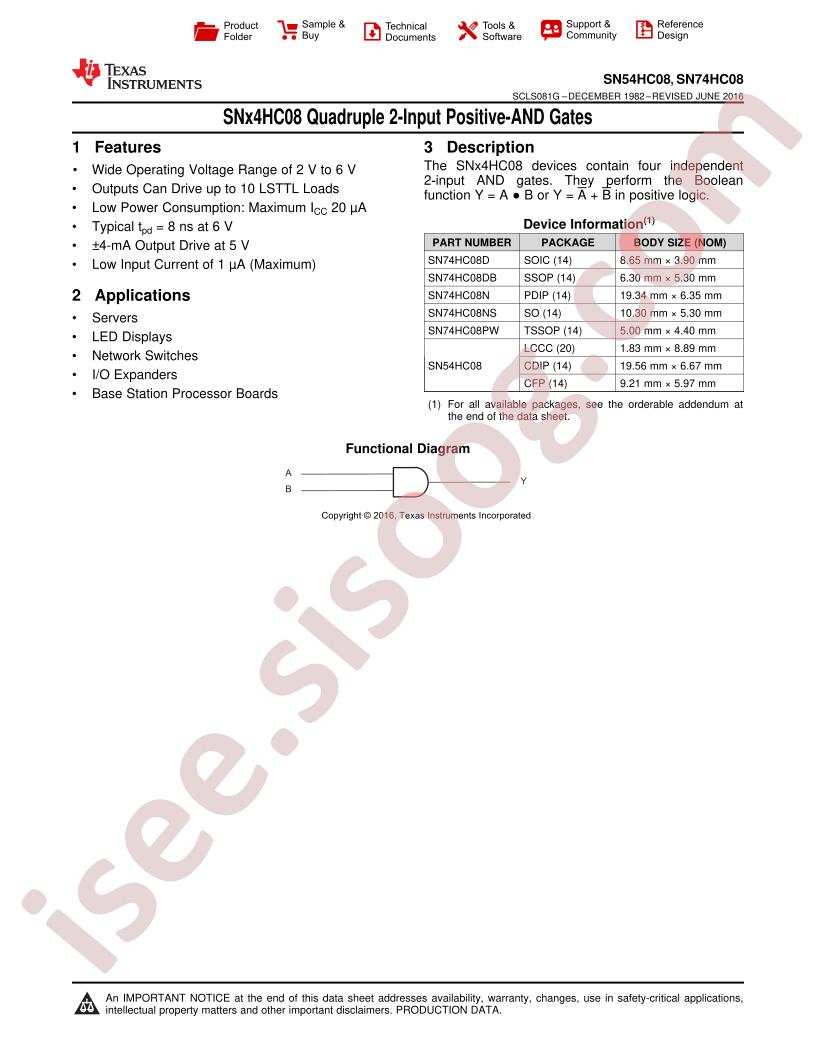

SN54HC08, SN74HC08 Datasheet |
|---|
مشخصات
- Series: 74HC
- Current - Quiescent (Max): 2µA
- Package / Case: 14-TSSOP (0.173", 4.40mm Width)
- Logic Level - High: 1.5V ~ 4.2V
- Number of Circuits: 4
- Number of Inputs: 2
- Features: -
- Current - Output High, Low: 5.2mA, 5.2mA
- Mounting Type: Surface Mount
- Supplier Device Package: 14-TSSOP
- Logic Type: AND Gate
- Operating Temperature: -40°C ~ 85°C
- Max Propagation Delay @ V, Max CL: 17ns @ 6V, 50pF
- Manufacturer: Texas Instruments
- Voltage - Supply: 2V ~ 6V
- Packaging: Tape & Reel (TR)
- Base Part Number: SN74HC0
- Part Status: Active
- Logic Level - Low: 0.5V ~ 1.8V
- detail: AND Gate IC 4 Channel 14-TSSOP
