دیتاشیت SN74HC109NSR

مشخصات دیتاشیت

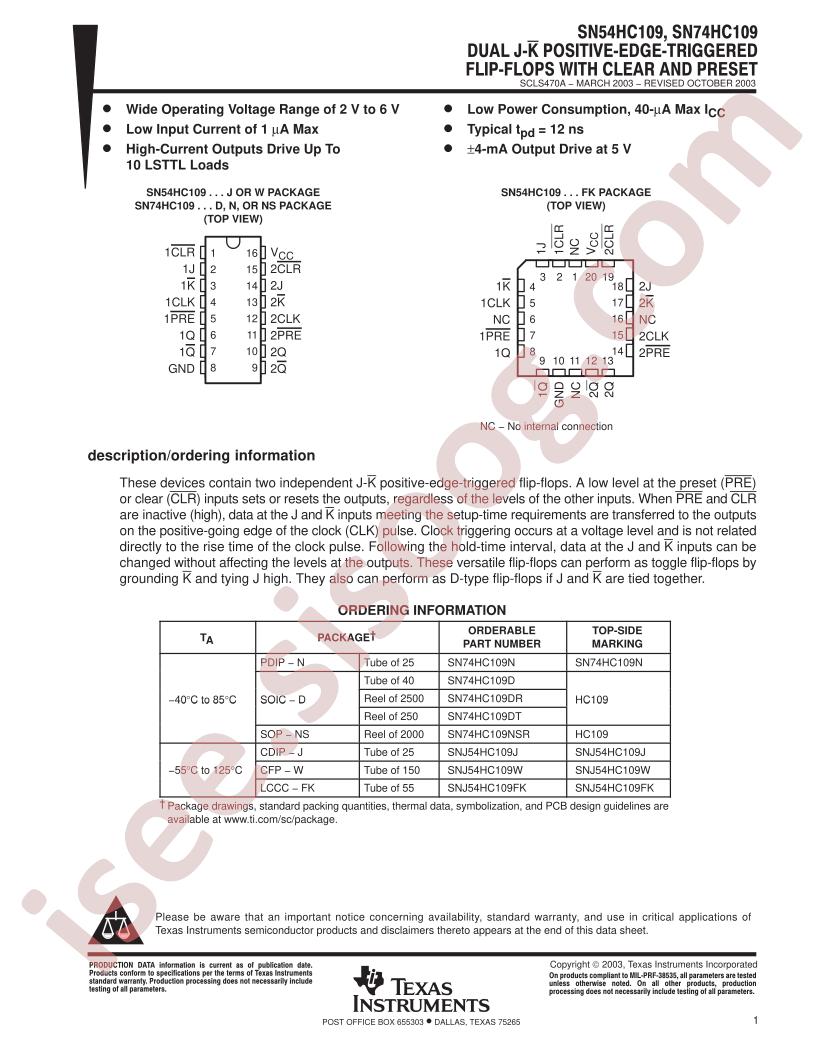

دانلود دیتاشیت SN54HC109, SN74HC109	SN54HC109, SN74HC109 Datasheet

RoHS: true
Type: JK-Type
Series: 74HC
Category: Logic ICs/Flip Flops
Function: 置位和复位
Datasheet: Texas Instruments SN74HC109NSR
Output Type: 互补型
Sink Current: 5.2mA
Trigger Type: 上升沿
Source Current: 5.2mA
Supply Voltage: 2V~6V
Clock Frequency: 60MHz
Input Capacitance: 3pF
Quiescent Current (Iq): 4uA
Maximum Propagation Delay: 30ns@6V,50pF
Package: SOP-16-208mil
Manufacturer: Texas Instruments
Number of Elements: 2
Voltage - Supply: 2V ~ 6V
Operating Temperature: -40°C ~ 85°C (TA)
Package / Case: 16-DIP (0.300", 7.62mm)
Packaging: Tube
Supplier Device Package: 16-PDIP
Number of Bits per Element: 1
Current - Output High, Low: 5.2mA, 5.2mA
Part Status: Active
Base Part Number: SN74HC1
Mounting Type: Through Hole
Current - Quiescent (Iq): 4µA
Max Propagation Delay @ V, Max CL: 30ns @ 6V, 50pF
detail: Flip Flop 2 Element JK Type 1 Bit Positive Edge 16-DIP (0.300", 7.62mm)
