دیتاشیت SN74HC241NSR

مشخصات دیتاشیت

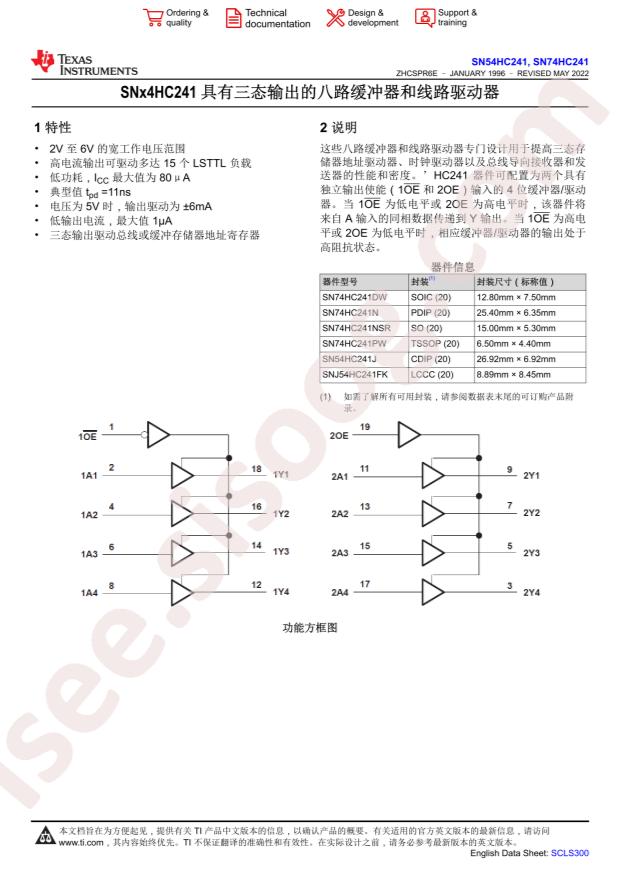

دانلود دیتاشیت SN54HC241, SN74HC241	SN54HC241, SN74HC241 Datasheet

RoHS: true
Category: Logic ICs/Buffer/Driver/Transceiver
Datasheet: Texas Instruments SN74HC241NSR
Input type: -
output type: Tri-State
Sink Current: 7.8mA
Source Current: 7.8mA
Supply Voltage: 2V~6V
Operating Temperature: -40°C~+85°C
Package: SOP-20-208mil
Manufacturer: Texas Instruments
Series: 74HC
Package / Case: 20-SOIC (0.209", 5.30mm Width)
Number of Bits per Element: 4
Number of Elements: 2
Supplier Device Package: 20-SO
Part Status: Active
Current - Output High, Low: 7.8mA, 7.8mA
Mounting Type: Surface Mount
Base Part Number: SN74HC2
Voltage - Supply: 2V ~ 6V
Packaging: Cut Tape (CT)
Logic Type: Buffer, Non-Inverting
detail: Buffer, Non-Inverting 2 Element 4 Bit per Element 3-State Output 20-SO
