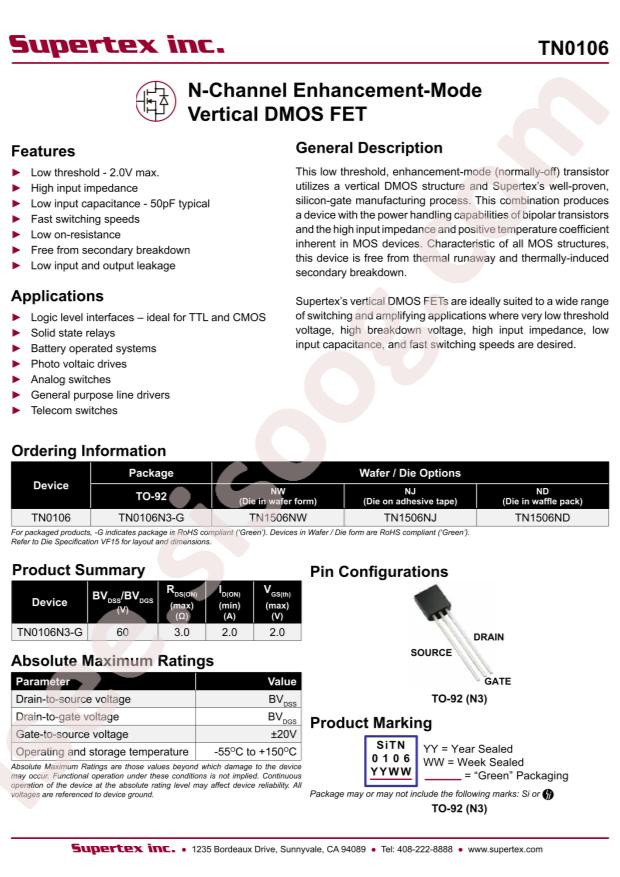

دیتاشیت TN0106N3-G

TN0106

مشخصات دیتاشیت

نام دیتاشیت TN0106
حجم فایل 616.478 کیلوبایت
نوع فایل pdf
تعداد صفحات 5

دانلود دیتاشیت TN0106

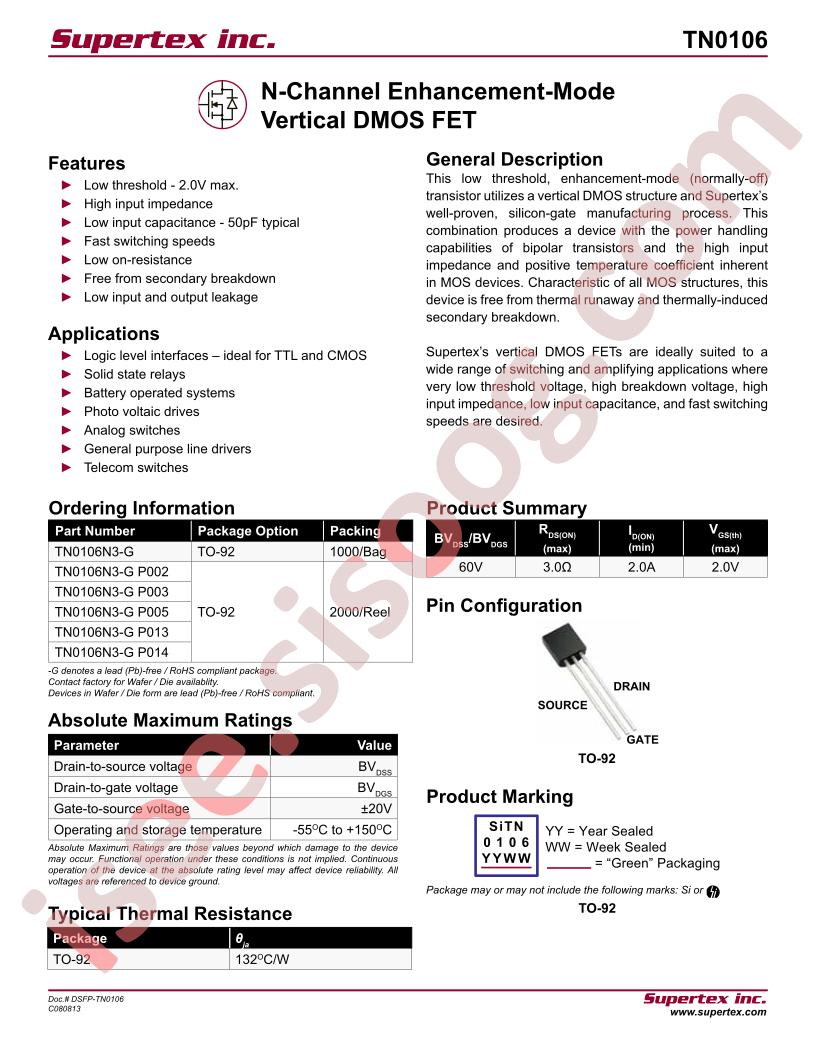

TN0106 Datasheet

مشخصات

  • Manufacturer: Microchip Technology
  • Series: -
  • Packaging: Bulk
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 60V
  • Current - Continuous Drain (Id) @ 25°C: 350mA (Tj)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Rds On (Max) @ Id, Vgs: 3Ohm @ 500mA, 10V
  • Vgs(th) (Max) @ Id: 2V @ 500µA
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 60pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 1W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-92-3
  • Package / Case: TO-226-3, TO-92-3 (TO-226AA)
  • detail: N-Channel 60V 350mA (Tj) 1W (Tc) Through Hole TO-92-3
