دیتاشیت AD9653BCPZ-125
مشخصات دیتاشیت
| نام دیتاشیت |
AD9653
|
| حجم فایل |
1534.719
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
41
|
مشخصات
-
Manufacturer:
Analog Devices Inc.
-
Series:
-
-
Packaging:
Tray
-
Part Status:
Active
-
Number of Bits:
16
-
Sampling Rate (Per Second):
125M
-
Number of Inputs:
4
-
Input Type:
Differential
-
Data Interface:
LVDS - Serial
-
Configuration:
S/H-ADC
-
Ratio - S/H:ADC:
1:1
-
Number of A/D Converters:
4
-
Architecture:
Pipelined
-
Reference Type:
External, Internal
-
Voltage - Supply, Analog:
1.7V ~ 1.9V
-
Voltage - Supply, Digital:
1.7V ~ 1.9V
-
Features:
Simultaneous Sampling
-
Operating Temperature:
-40°C ~ 85°C
-

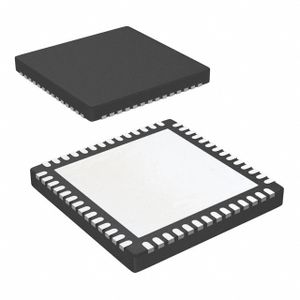

Package / Case:
48-WFQFN Exposed Pad, CSP
-
Supplier Device Package:
48-LFCSP-WQ (7x7)
-
Mounting Type:
Surface Mount
-
Base Part Number:
AD9653
-
detail:
16 Bit Analog to Digital Converter 4 Input 4 Pipelined 48-LFCSP-WQ (7x7)
