دیتاشیت S9S12G128F0MLH
مشخصات دیتاشیت

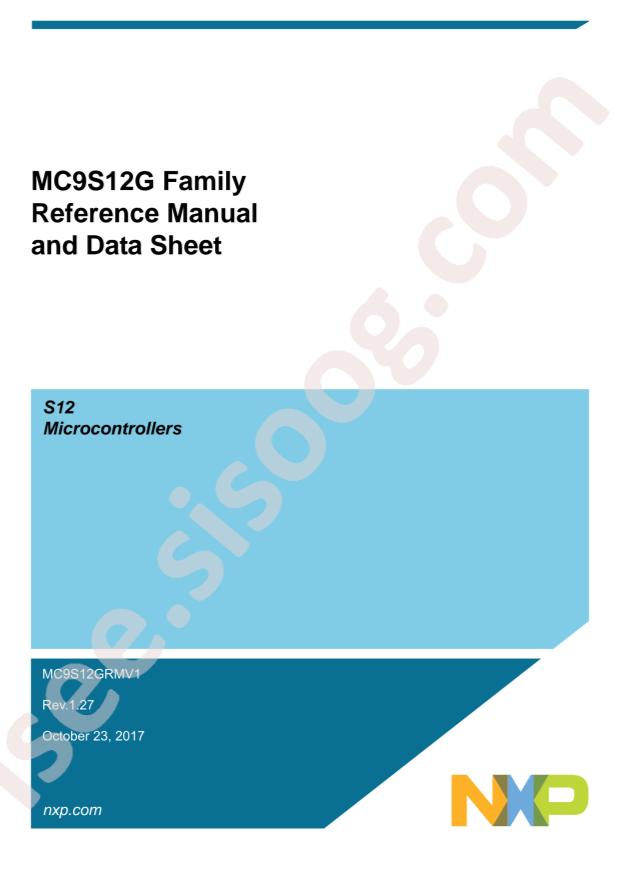

| نام دیتاشیت | MC9S12G Family Datasheet |
|---|---|
| حجم فایل | 5773.575 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 1276 |
دانلود دیتاشیت MC9S12G Family Datasheet |
MC9S12G Family Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- EEPROM: 128KB
- CPU Core: Other series
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 8KB
- Watchdog: Yes
- ADC (Bit): 10bit
- DAC (Bit): -
- Datasheet: NXP Semicon S9S12G128F0MLH
- PWM (Bit): -
- Real-Time Clock: -
- CPU Maximum Speed: 25MHz
- GPIO Ports Number: 54
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: Low-VoltageDetect;PWM
- Program Memory Type: FLASH
- Direct Memory Access: -
- Program Storage Size: 128KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 3.13V~5.5V
- Infrared Data Association: Yes
- Operating Temperature Range: -40°C~+125°C
- Secure Digital Input and Output: -
- Package: LQFP-64(10x10)
- Manufacturer: NXP Semicon
- Series: HCS12
- Packaging: Tray
- Part Status: Active
- Core Processor: 12V1
- Core Size: 16-Bit
- Speed: 25MHz
- Connectivity: CANbus, IrDA, LINbus, SCI, SPI
- Peripherals: LVD, POR, PWM, WDT
- Number of I/O: 54
- Program Memory Size: 128KB (128K x 8)
- EEPROM Size: 4K x 8
- Voltage - Supply (Vcc/Vdd): 3.13V ~ 5.5V
- Data Converters: A/D 12x10b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 64-LQFP
- Supplier Device Package: 64-LQFP (10x10)
- Base Part Number: S9S12
- detail: 12V1 HCS12 Microcontroller IC 16-Bit 25MHz 128KB (128K x 8) FLASH 64-LQFP (10x10)
