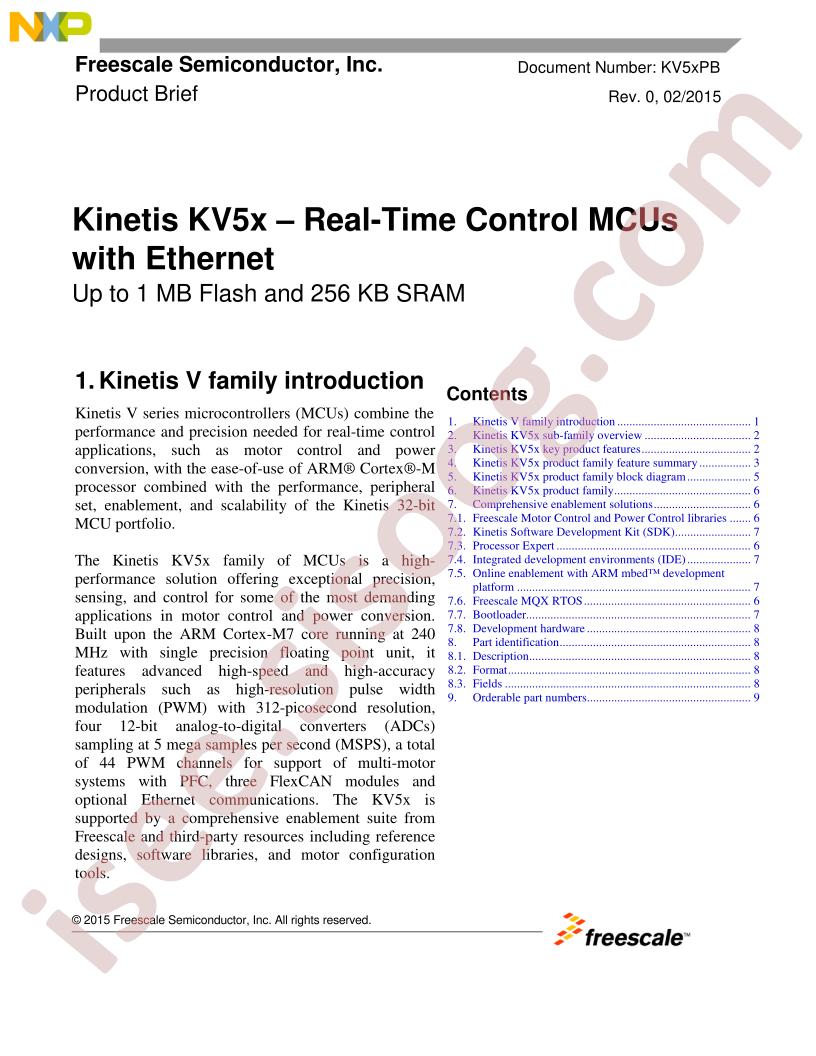

KV5x Family Product Brief Datasheet

Datasheet specifications

Download Datasheet KV5x Family Product Brief	Download Datasheet

RoHS: true
EEPROM: -
CPU Core: ARM-MSeries
Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
RAM Size: -
Watchdog: Yes
ADC (Bit): 12bit;16bit
DAC (Bit): 12bit
Datasheet: NXP Semicon MKV58F1M0VLQ24
PWM (Bit): -
Real-Time Clock: -
CPU Maximum Speed: 220MHz
GPIO Ports Number: 111
Low-Voltage Detect: Yes
CCP Capture/Compare: -
Internal Comparator: -
Internal Oscillator: Yes
Program Memory Type: FLASH
Direct Memory Access: Yes
Program Storage Size: 1MB
Universal Serial Bus: -
communication protocol: -
Operating Voltage Range: 1.71V~3.6V
Infrared Data Association: -
Operating Temperature Range: -40°C~+105°C
Secure Digital Input and Output: -
Package: LQFP-144(20x20)
Manufacturer: NXP Semicon
Series: Kinetis KV
Packaging: Tray
Part Status: Active
Core Processor: ARM® Cortex®-M7
Core Size: 32-Bit
Speed: 240MHz
Connectivity: CANbus, Ethernet, I²C, SPI, UART/USART
Peripherals: DMA, LVD, POR, PWM, WDT
Number of I/O: 111
Program Memory Size: 1MB (1M x 8)
EEPROM Size: -
Voltage - Supply (Vcc/Vdd): 1.71V ~ 3.6V
Data Converters: A/D 4x12b, 1x16b; D/A 1x12b
Oscillator Type: Internal
Operating Temperature: -40°C ~ 105°C (TA)
Mounting Type: Surface Mount
Package / Case: 144-LQFP
Supplier Device Package: 144-LQFP (20x20)
Base Part Number: MKV58
