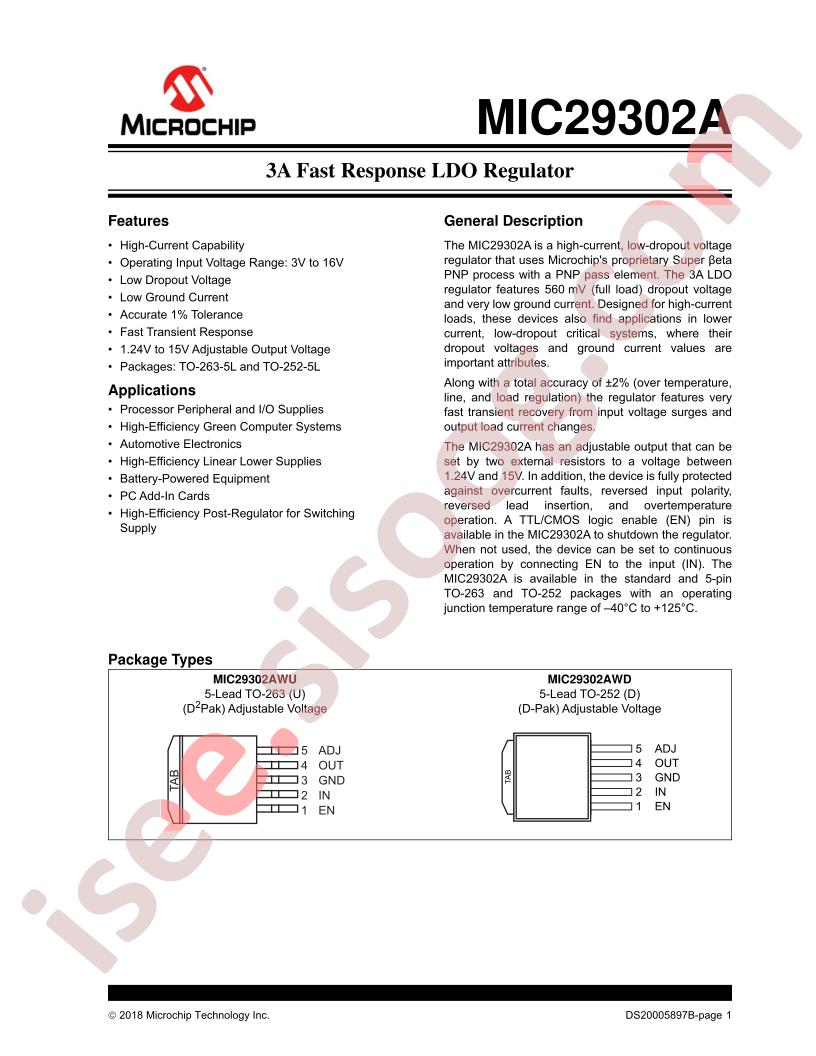

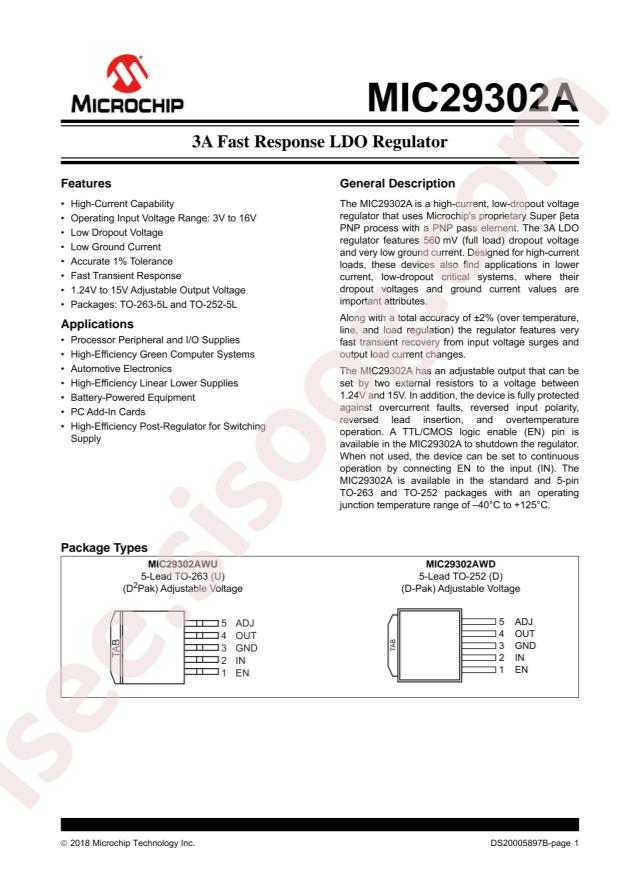

دیتاشیت MIC29302AWU-TR
مشخصات دیتاشیت
| نام دیتاشیت |
MIC29302A
|
| حجم فایل |
880.237
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
24
|
مشخصات
-
Manufacturer:
Microchip Technology
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Output Type:
Adjustable
-
Number of Regulators:
1
-
Voltage - Input (Max):
16V
-
Voltage - Output (Min/Fixed):
1.24V
-
Voltage - Output (Max):
15V
-
Voltage Dropout (Max):
0.8V @ 3A
-
Current - Output:
3A
-
Current - Quiescent (Iq):
20mA
-
Current - Supply (Max):
150mA
-
PSRR:
-
-
Control Features:
Enable
-
Protection Features:
Over Current, Over Temperature, Reverse Polarity
-
Operating Temperature:
-40°C ~ 125°C
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
-
Supplier Device Package:
TO-263-5
-
Base Part Number:
MIC29302A
-
detail:
Linear Voltage Regulator IC 1 Output 3A TO-263-5
