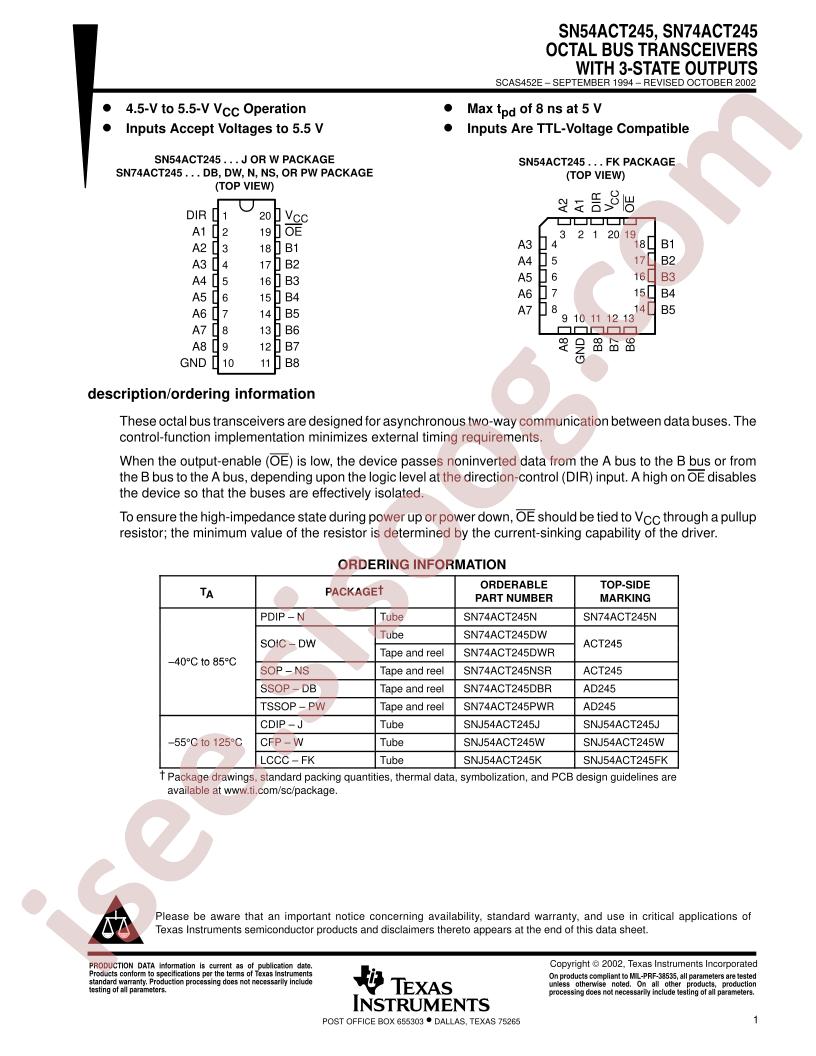

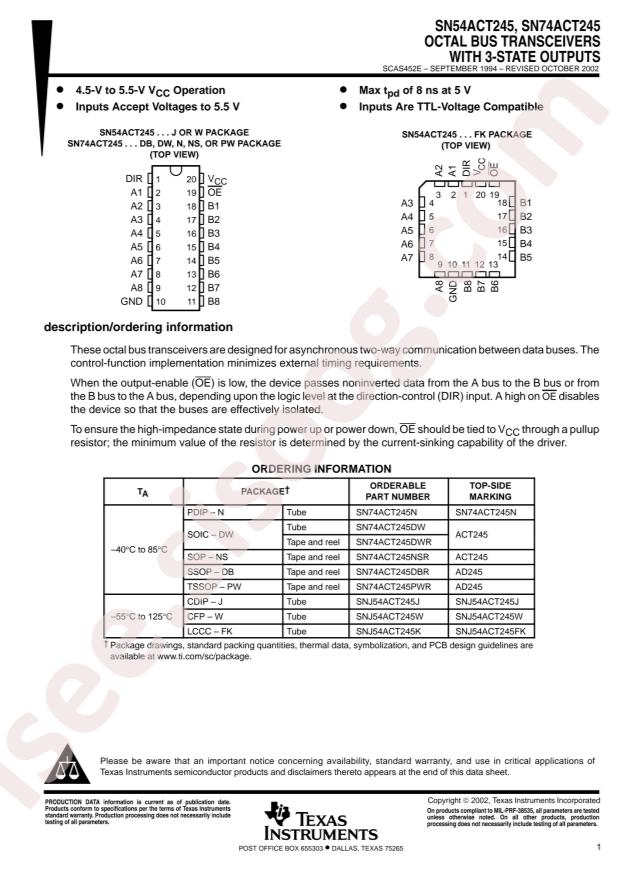

SN74ACT245PWR Datasheet
Datasheet specifications
| Datasheet's name | SN74ACT245PWR |
|---|---|
| File size | 93.679 KB |
| File type | |
| Number of pages | 31 |
Download Datasheet SN74ACT245PWR |
Download Datasheet |
|---|
Other documentations
Logic Guide 20 pages
SN54/74ACT245 35 pages
Technical specifications
- RoHS: true
- Category: Logic ICs/Buffer/Driver/Transceiver
- Datasheet: Texas Instruments SN74ACT245PWR
- Input type: -
- output type: Tri-State
- Logic Family: 74ACT
- Sink Current: 24mA
- Source Current: 24mA
- Supply Voltage: 4.5V~5.5V
- Number of Elements: 1
- Operating Temperature: -40°C~+85°C
- Number of Bits per Element: 8
- Package: TSSOP-20
- Manufacturer: Texas Instruments
- Package / Case: 20-TSSOP (0.173", 4.40mm Width)
- Base Part Number: SN74ACT2
- Logic Type: Transceiver, Non-Inverting
- Current - Output High, Low: 24mA, 24mA
- Supplier Device Package: 20-TSSOP
- Mounting Type: Surface Mount
- Part Status: Active
- Series: 74ACT
- Packaging: Cut Tape (CT)
- Voltage - Supply: 4.5V ~ 5.5V
