دیتاشیت NTF2955T1G
مشخصات دیتاشیت
| نام دیتاشیت | NTF2955,NVF2955 |
|---|---|
| حجم فایل | 128.744 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 7 |
دانلود دیتاشیت NTF2955,NVF2955 |

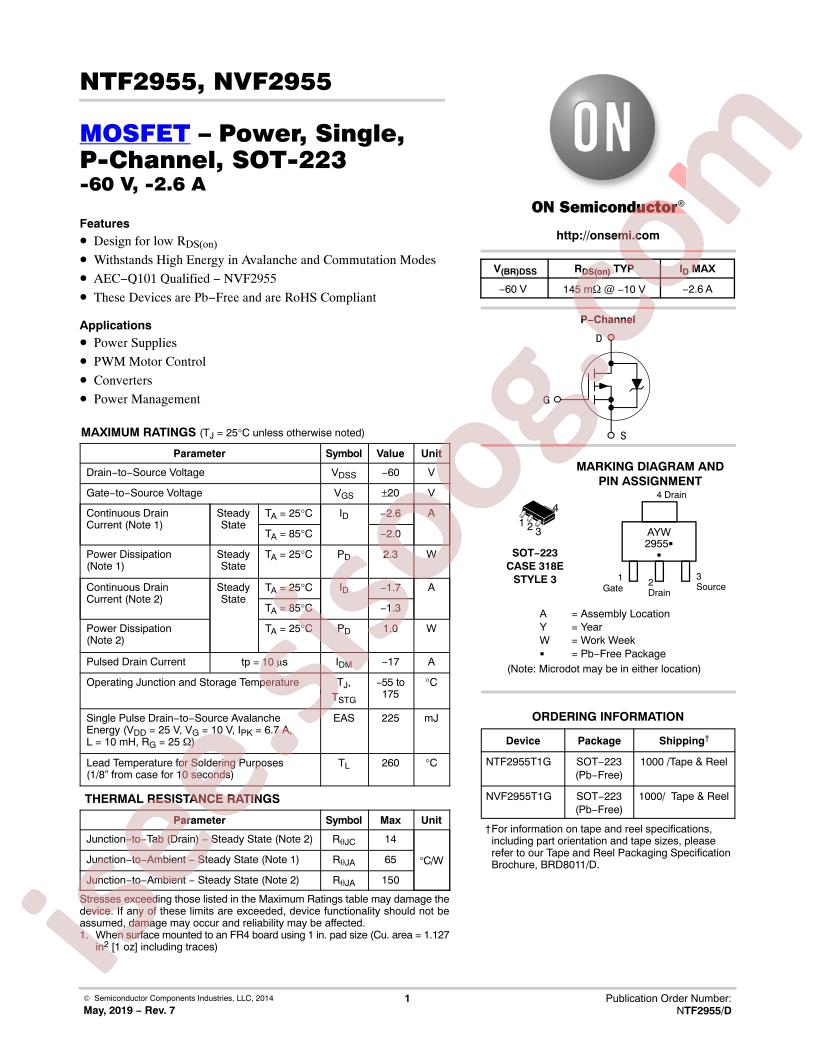

NTF2955,NVF2955 Datasheet |
|---|
مشخصات
- RoHS: true
- Type: P Channel
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: onsemi NTF2955T1G
- Operating Temperature: -55°C~+175°C@(Tj)
- Power Dissipation (Pd): 1W
- Total Gate Charge (Qg@Vgs): 14.3nC@10V
- Drain Source Voltage (Vdss): 60V
- Input Capacitance (Ciss@Vds): 492pF@25V
- Continuous Drain Current (Id): 1.7A
- Gate Threshold Voltage (Vgs(th)@Id): 4V@1mA
- Drain Source On Resistance (RDS(on)@Vgs,Id): 185mΩ@10V,2.4A
- Package: SOT-223-4
- Manufacturer: onsemi
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60V
- Current - Continuous Drain (Id) @ 25°C: 1.7A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 185mOhm @ 2.4A, 10V
- Vgs(th) (Max) @ Id: 4V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 14.3nC @ 10V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 492pF @ 25V
- FET Feature: -
- Power Dissipation (Max): 1W (Ta)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-223
- Package / Case: TO-261-4, TO-261AA
- Base Part Number: NTF295
- detail: P-Channel 60V 1.7A (Ta) 1W (Ta) Surface Mount SOT-223
