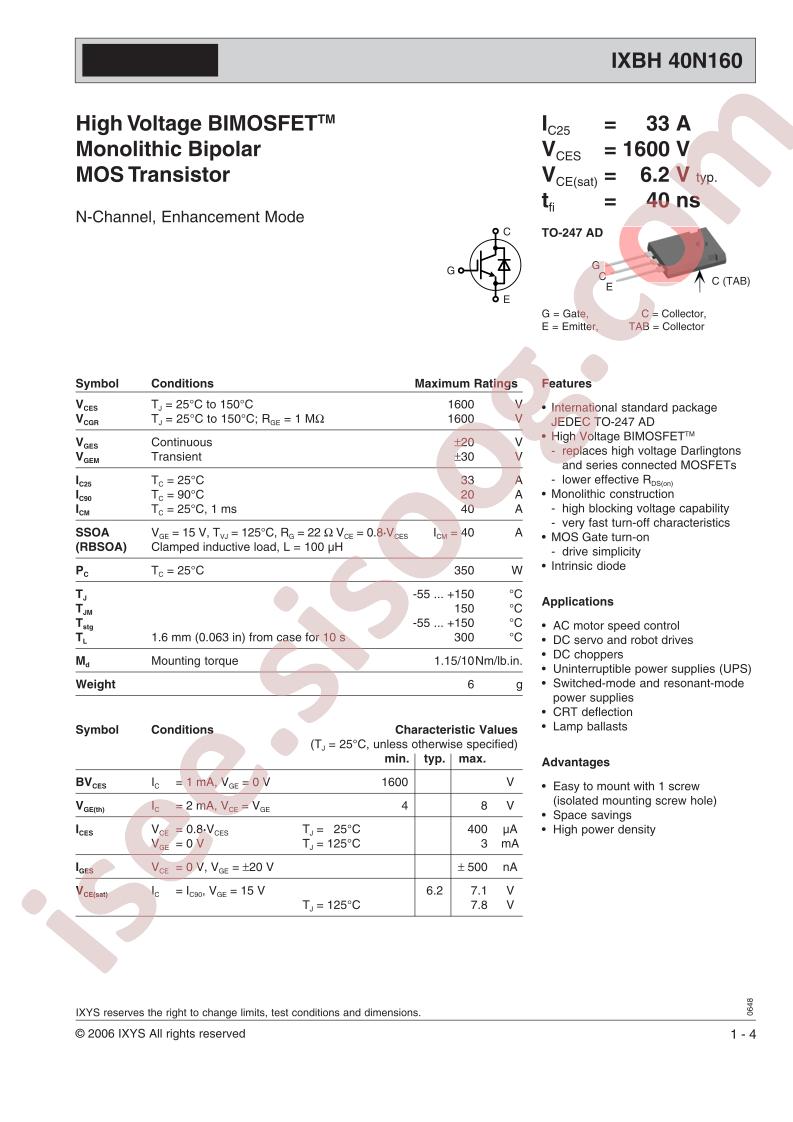

IXBH40N160 Datasheet
Datasheet specifications
| Datasheet's name | IXBH40N160 |
|---|---|
| File size | 132.349 KB |
| File type | |
| Number of pages | 5 |
Download Datasheet IXBH40N160 |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: IXYS
- Series: BIMOSFET™
- Packaging: Bulk
- Part Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 1600V
- Current - Collector (Ic) (Max): 33A
- Current - Collector Pulsed (Icm): 40A
- Vce(on) (Max) @ Vge, Ic: 7.1V @ 15V, 20A
- Power - Max: 350W
- Switching Energy: -
- Input Type: Standard
- Gate Charge: 130nC
- Td (on/off) @ 25°C: -
- Test Condition: 960V, 20A, 22Ohm, 15V
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247AD (IXBH)
- detail: IGBT 1600V 33A 350W Through Hole TO-247AD (IXBH)
