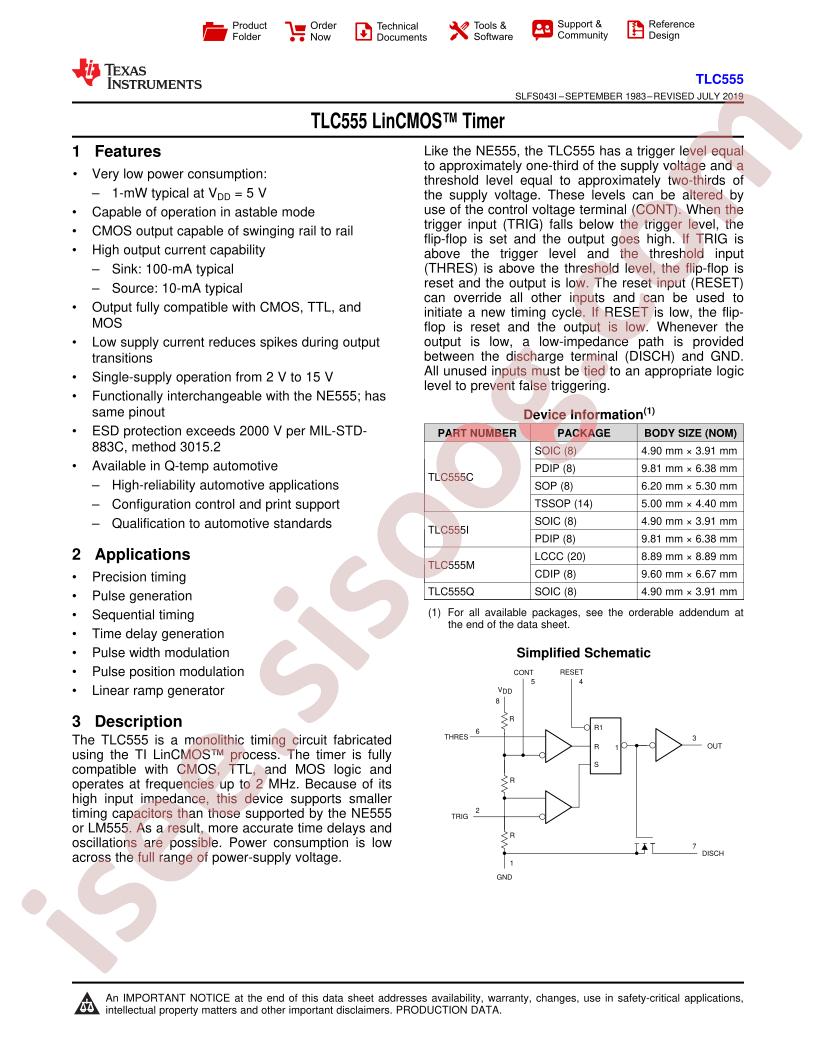

TLC555 Datasheet Datasheet

TLC555 Datasheet

Datasheet specifications

Datasheet's name TLC555 Datasheet
File size 1457.941 KB
File type pdf
Number of pages 42

Download Datasheet TLC555 Datasheet

Download Datasheet

Other documentations

TLC555CDR 43 pages

Technical specifications

  • RoHS: true
  • Category: RTC/Clock Chip/Timers / Clock Oscillators
  • Datasheet: Texas Instruments TLC555IP
  • Frequency: 2.1MHz
  • Supply Current: 360uA
  • Supply Voltage: 3V~15V
  • Operating Temperature: -40°C~+85°C
  • Package: PDIP-8
  • Manufacturer: Texas Instruments
  • Base Part Number: TLC555
  • Package / Case: 8-DIP (0.300", 7.62mm)
  • Series: LinCMOS™
  • Type: 555 Type, Timer/Oscillator (Single)
  • Packaging: Tube
  • Supplier Device Package: 8-PDIP
  • Voltage - Supply: 3V ~ 15V
  • Part Status: Active
  • Current - Supply: 360µA
  • Mounting Type: Through Hole
  • Count: -
  • detail: 555 Type, Timer/Oscillator (Single) IC 2.1MHz 8-PDIP
