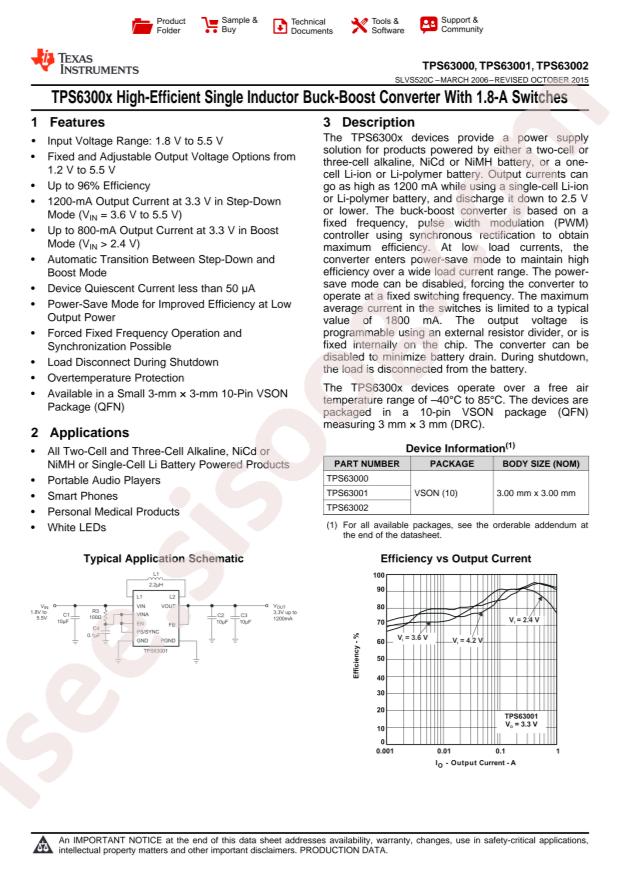

دیتاشیت TPS63002DRCR
مشخصات دیتاشیت
| نام دیتاشیت |
TPS63000-02
|
| حجم فایل |
2022.374
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
26
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Buck-boost type
-
Topology:
Step-down-Boost
-
Datasheet:
Texas Instruments TPS63002DRCR
-
Output Type:
Fixed
-
Input Voltage:
1.8V~5.5V
-
Output Voltage:
5V
-
Number of Outputs:
1
-
Switching Frequency:
1.5MHz
-
Output Current (Max):
1.6A
-
Operating Temperature:
-40°C~+85°C@(TA)
-
Synchronous Rectification:
Yes
-
Package:
DFN-10(3x3)
-
Manufacturer:
Texas Instruments
-
Frequency - Switching:
1.25MHz ~ 1.5MHz
-
Package / Case:
10-VFDFN Exposed Pad
-
Supplier Device Package:
10-VSON (3x3)
-
Voltage - Output (Min/Fixed):
5V
-
Current - Output:
1.6A (Switch)
-
Output Configuration:
Positive
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Voltage - Output (Max):
-
-
Series:
-
-
Mounting Type:
Surface Mount
-
Voltage - Input (Max):
5.5V
-
Base Part Number:
TPS630
-
Voltage - Input (Min):
1.8V
-
Synchronous Rectifier:
Yes
-
detail:
Buck-Boost Switching Regulator IC Positive Fixed 5V 1 Output 1.6A (Switch) 10-VFDFN Exposed Pad
