- دیتاشیت UCC27714DR

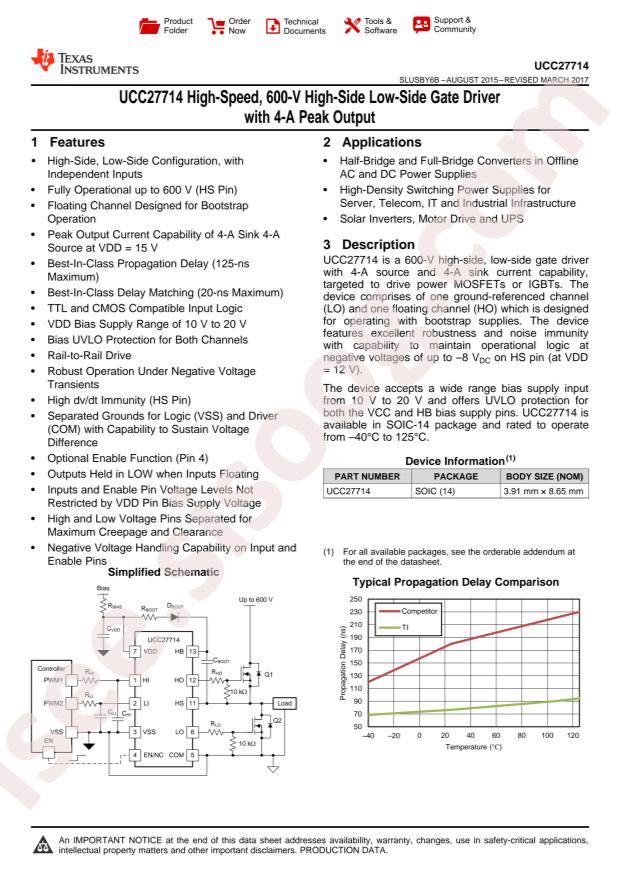

UCC27714DR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | UCC27714DR |
|---|---|
| حجم فایل | 109.525 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 44 |
دانلود دیتاشیت UCC27714DR |
دانلود دیتاشیت |
|---|
سایر مستندات
UCC27714 Datasheet 44 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Gate Drive ICs
- Datasheet: Texas Instruments UCC27714DR
- Fall Time: 15ns
- Load Type: IGBT;MOSFET
- Rise Time: 15ns
- Supply Voltage: 10V~18V
- Number of Drivers: 2
- Driven Configuration: Half Bridge
- Operating Temperature: -40°C~+125°C@(Tj)
- Peak Output Current(sink): 4A
- Peak Output Current(source): 4A
- Package: SOP-14
- Manufacturer: Texas Instruments
- Channel Type: Independent
- Input Type: Non-Inverting
- Voltage - Supply: 10V ~ 18V
- Series: -
- Mounting Type: Surface Mount
- Packaging: Tube
- Supplier Device Package: 14-SOIC
- Package / Case: 14-SOIC (0.154", 3.90mm Width)
- Part Status: Active
- Logic Voltage - VIL, VIH: 1.2V, 2.7V
- Rise / Fall Time (Typ): 15ns, 15ns
- Gate Type: IGBT, N-Channel MOSFET
- Base Part Number: UCC277
- High Side Voltage - Max (Bootstrap): 600V
- Current - Peak Output (Source, Sink): 4A, 4A
- detail: Half-Bridge Gate Driver IC Non-Inverting 14-SOIC
