دیتاشیت VND5N07-E

VND5N07-E

مشخصات دیتاشیت

نام دیتاشیت VND5N07-E
حجم فایل 377.079 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

دانلود دیتاشیت VND5N07-E

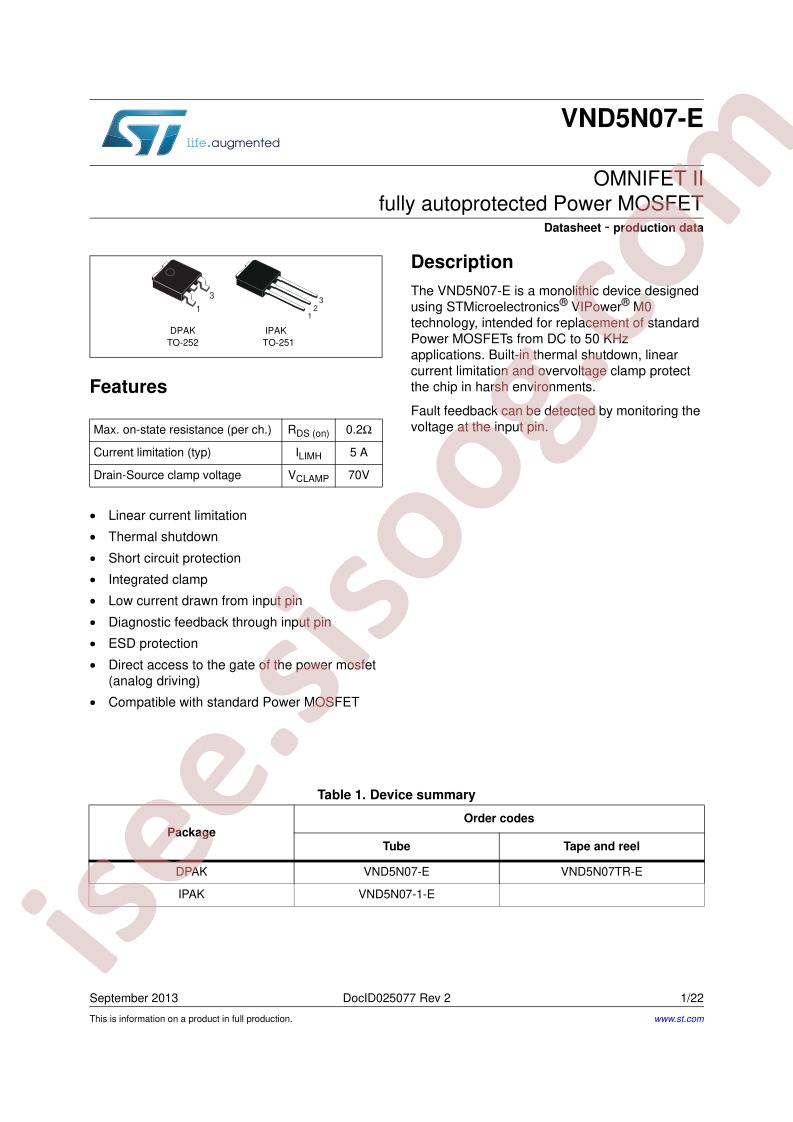

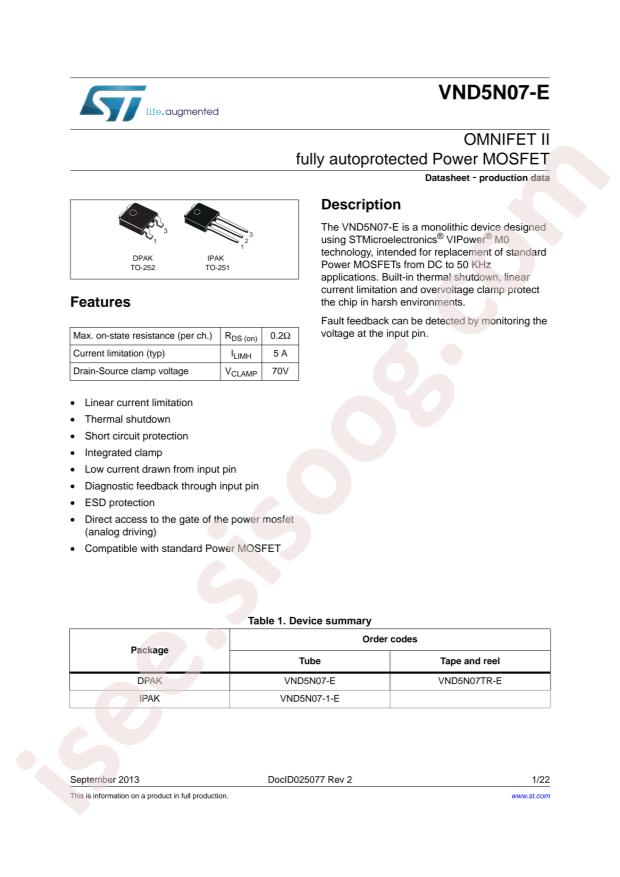

VND5N07-E Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: OMNIFET II™, VIPower™
  • Packaging: Tube
  • Part Status: Active
  • Switch Type: General Purpose
  • Number of Outputs: 1
  • Ratio - Input:Output: 1:1
  • Output Configuration: Low Side
  • Output Type: N-Channel
  • Interface: On/Off
  • Voltage - Load: 55V (Max)
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Current - Output (Max): 3.5A
  • Rds On (Typ): 200mOhm (Max)
  • Input Type: Non-Inverting
  • Features: -
  • Fault Protection: Current Limiting (Fixed), Over Temperature, Over Voltage
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: DPAK
  • Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Base Part Number: VND5N07
  • detail: Power Switch/Driver 1:1 N-Channel 3.5A DPAK
