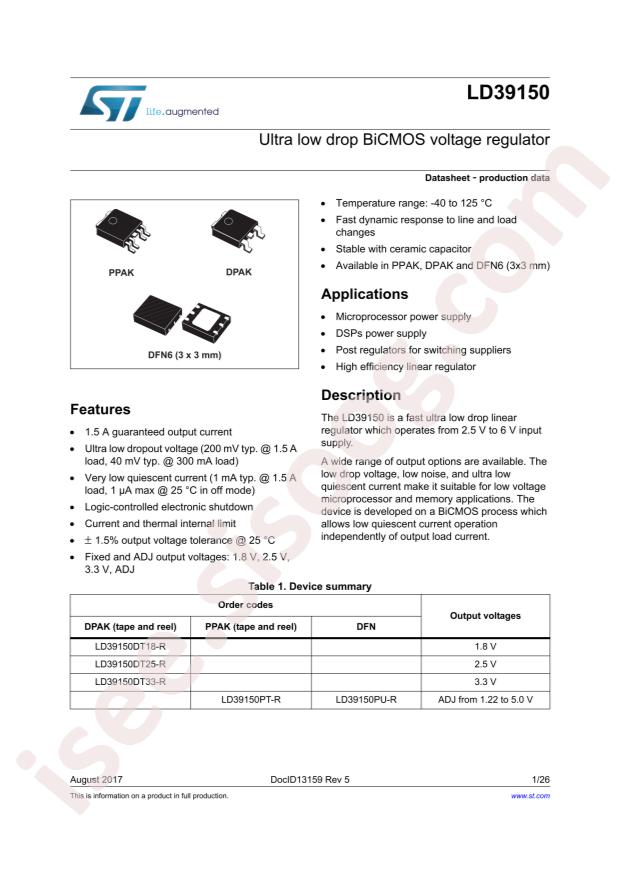

دیتاشیت LD39150DT33-R
مشخصات دیتاشیت
| نام دیتاشیت |
LD39150xx
|
| حجم فایل |
967.426
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
26
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
STMicroelectronics LD39150DT33-R
-
Output Type:
Fixed
-
Output Current:
1.5A
-
Output Voltage:
3.3V
-
Dropout Voltage:
400mV@(1.5A)
-
Output Polarity:
Positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
6V
-
Operating Temperature:
-40°C~+125°C@(Tj)
-
Quiescent Current (Ground Current):
2.5mA
-
Power Supply Rejection Ratio (PSRR):
65dB@(120Hz),55dB@(1kHz)
-
Package:
TO-252
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Voltage - Input (Max):
6V
-
Voltage - Output (Min/Fixed):
3.3V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
0.4V @ 1.5A
-
Current - Output:
1.5A
-
Current - Quiescent (Iq):
2.5mA
-
PSRR:
65dB ~ 55dB (120Hz ~ 1kHz)
-
Control Features:
-
-
Protection Features:
Over Current, Over Temperature
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-252-3, DPak (2 Leads + Tab), SC-63
-
Supplier Device Package:
DPAK
-
Base Part Number:
LD39150
-
detail:
Linear Voltage Regulator IC 1 Output 1.5A DPAK
